FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB Key Status Info".

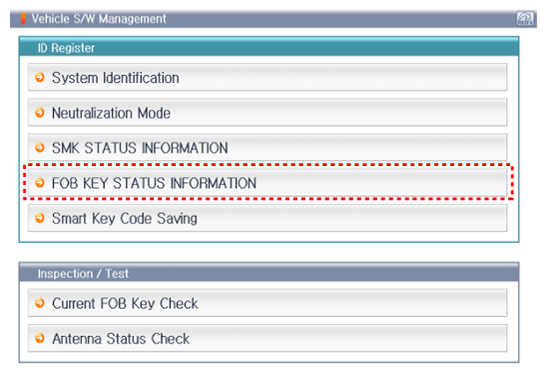

Fig 1: Screen Display - FOB Key Status Information (1 Of 2)
G12062575Courtesy of HYUNDAI MOTOR AMERICA

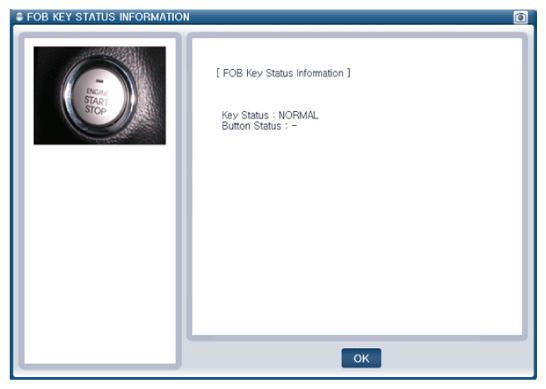

Fig 2: Screen Display - FOB Key Status Information (2 Of 2)
G12062576Courtesy of HYUNDAI MOTOR AMERICA
