Section 141 (Smart Key System (HEV))
>>
Components And Components Location
>>
Component Location (1)
Component Location (1)
WARNING:
This page is about a different variant/trim than selected.

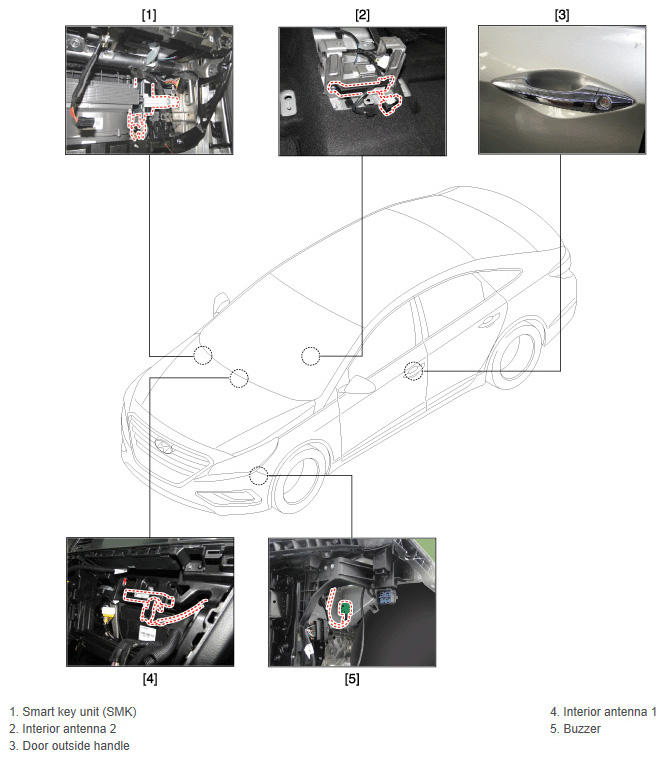

Fig 1: Smart Key System Components (1)
Courtesy of HYUNDAI MOTOR AMERICA
