Components and Components Location: Components

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

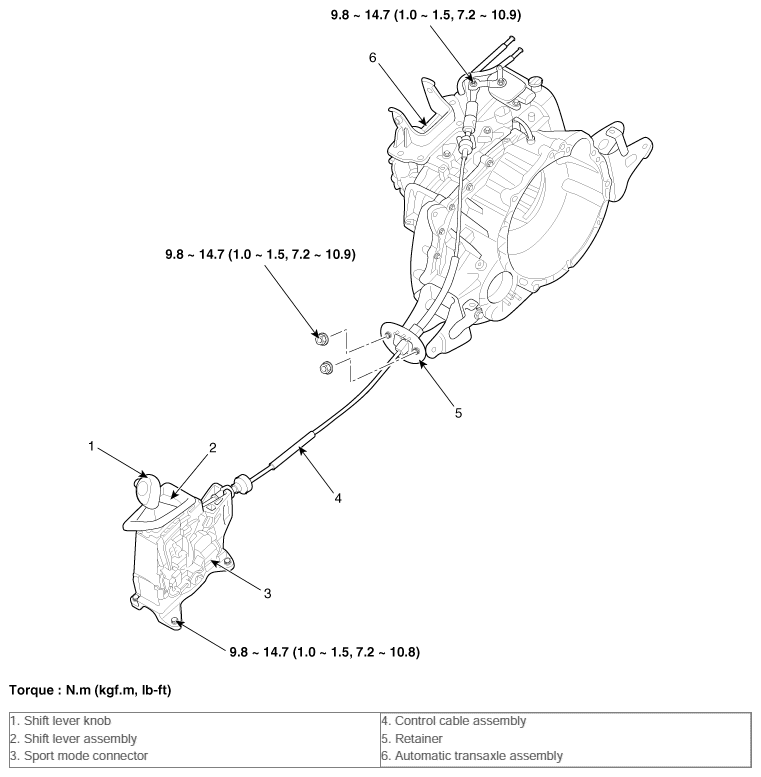

Fig 1: Identifying Shift Lever Related Components With Torque Specification
G10588875Courtesy of HYUNDAI MOTOR AMERICA
