Signal Waveform

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

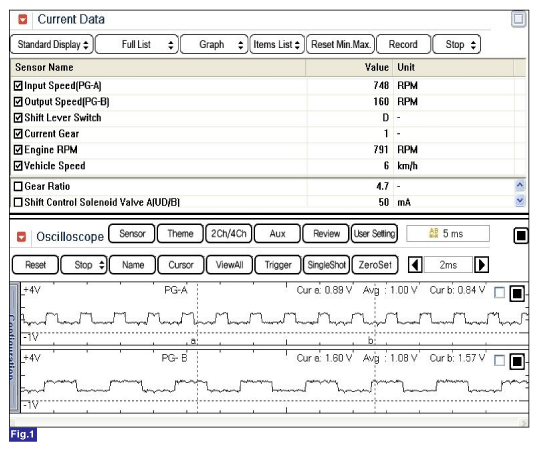

Fig 1: Screen Display - Current Data (1 Of 2)
G10588824Courtesy of HYUNDAI MOTOR AMERICA

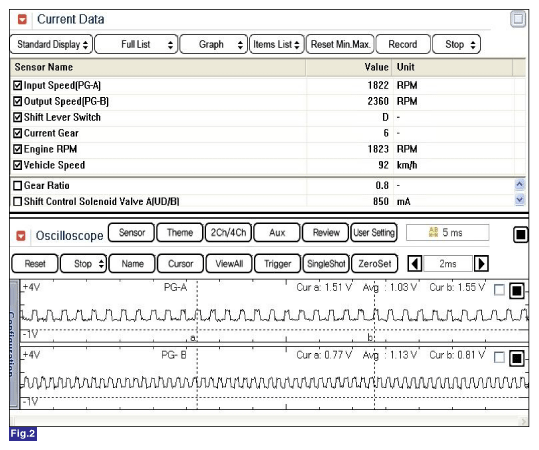

Fig 2: Screen Display - Current Data (2 Of 2)
G10588825Courtesy of HYUNDAI MOTOR AMERICA
