Calibration procedure

Perform wheel alignment and stand the steering wheel in a line within ±5° error.

Fig 1: Steering Wheel Calibration

Courtesy of HYUNDAI MOTOR AMERICA

1. Connect the GDS. (CAN line or OBD connector)
2. Turn ignition switch on.
3. Press calibration button of the Steering Wheel Angle Sensor.
4. SAS calibration procedure is performed.

   (Calibration records, DTC codes erasure)

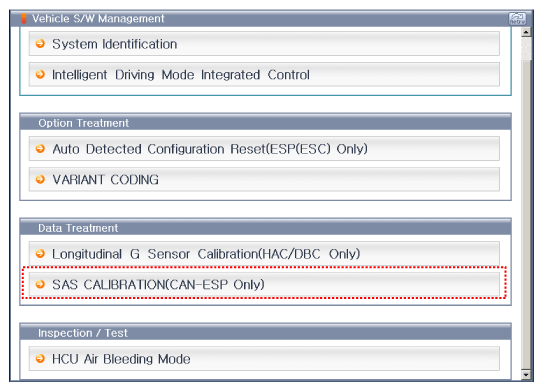

   Fig 2: Scantool Display - Vehicle S/W Management

   Courtesy of HYUNDAI MOTOR AMERICA

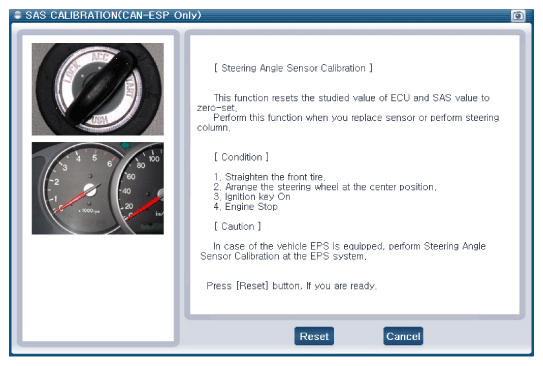

   Fig 3: Scantool Display - SAS Calibration

   Courtesy of HYUNDAI MOTOR AMERICA

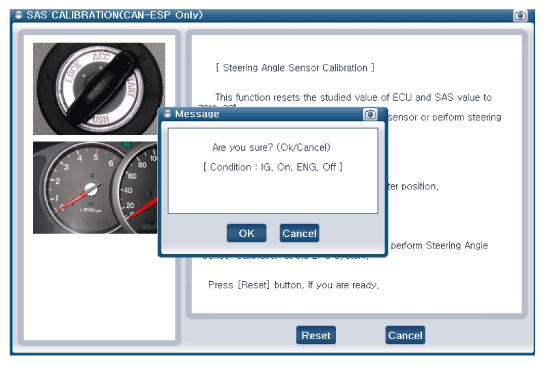

   Fig 4: Scantool Display - SAS Calibration (Message)

   Courtesy of HYUNDAI MOTOR AMERICA

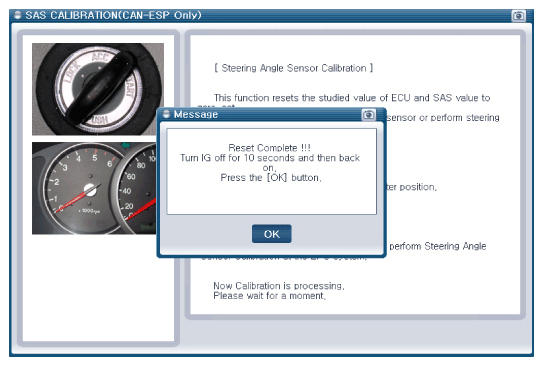

   Fig 5: Scantool Display - SAS Calibration (Reset Complete)

   Courtesy of HYUNDAI MOTOR AMERICA
