Components and Components Location: Components

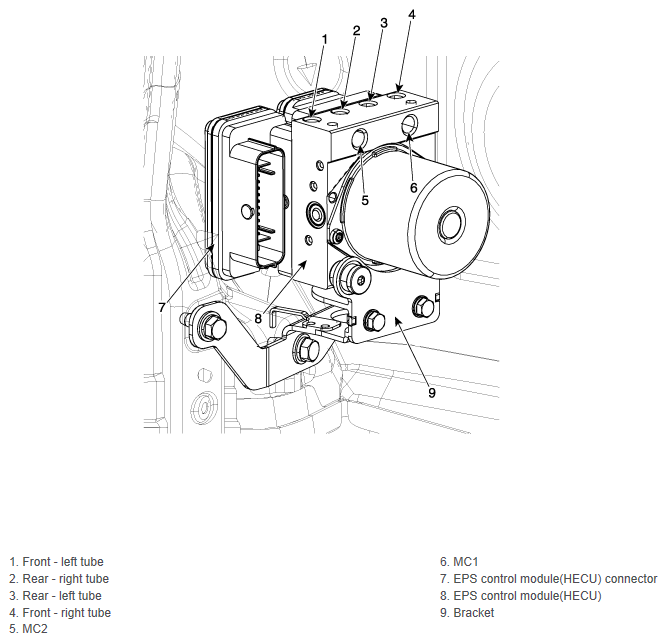

Fig 1: ESP Control Unit Components

G11987829

Courtesy of HYUNDAI MOTOR AMERICA
