[Driver Power Window Module (IMS, Front Safety)]

Fig 1: Driver Power Window Module (IMS, Front Safety) Circuit (1 Of 2)
G11988878Courtesy of HYUNDAI MOTOR AMERICA

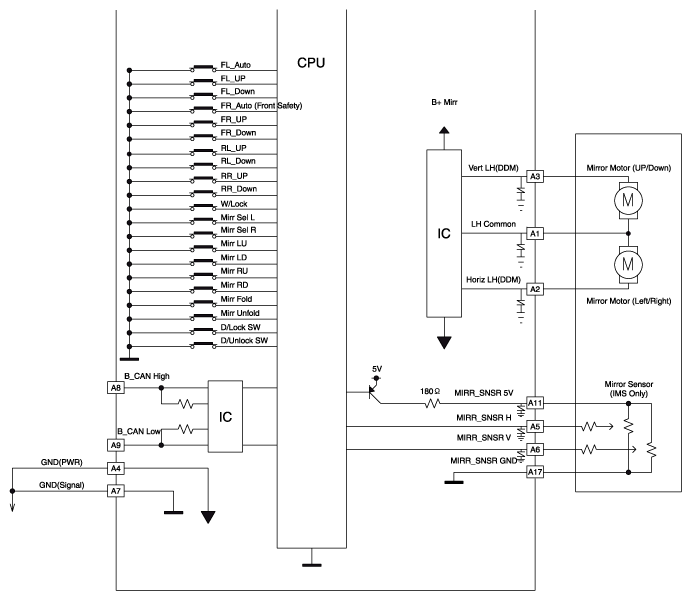

Fig 2: Driver Power Window Module (IMS, Front Safety) Circuit (2 Of 2)
G11988879Courtesy of HYUNDAI MOTOR AMERICA
