Santa Fe XL Base
>>
Repair and Diagnosis
>>
External Pages
>>
Different variant/trim
>>
Section 7 (Coupling Assembly)
>>
Pressure Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

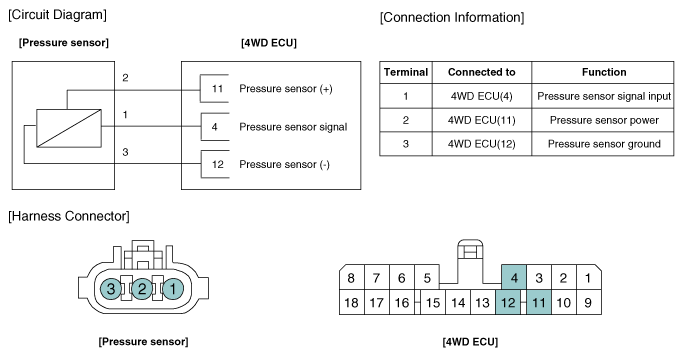

Fig 1: Pressure Sensor Diagram & Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
