Signal Waveform & Data

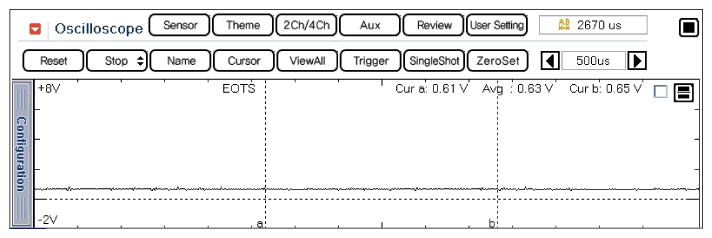

Fig 1: Screen Display - Normal Waveform Of EOTS At 76°C (168.4°F)
G12037087Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Normal Data Of IATS, ECTS & EOTS At IG ON
G12037088Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Screen Display - Normal Data Of IATS, ECTS & EOTS Engine At Operating Temperature
G12037089Courtesy of HYUNDAI MOTOR AMERICA
