Signal Waveform & Data

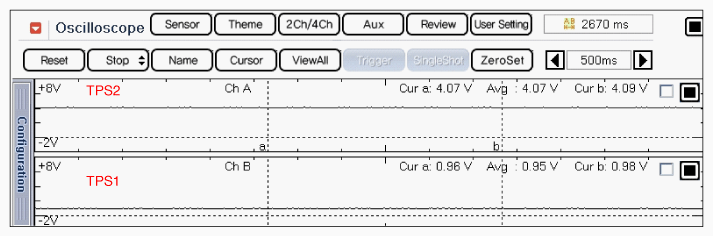

Fig 1: Screen Display - Normal Waveform Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON
G12038973Courtesy of HYUNDAI MOTOR AMERICA

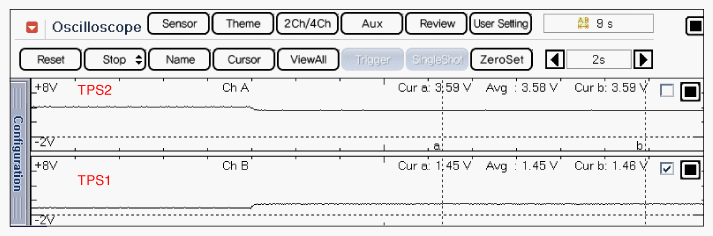

Fig 2: Screen Display - Normal Waveform Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON
G12038974Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Screen Display - Normal Data Of TPS1 & TPS2 With IG ON Condition
G12038975Courtesy of HYUNDAI MOTOR AMERICA
Fig 4: Screen Display - Normal Data Of TPS1 & TPS2 With Open Condition
G12038976Courtesy of HYUNDAI MOTOR AMERICA
Fig 5: Screen Display - Normal Data Of TPS1 & TPS2 With Short To Ground In TPS1 Circuit
G12038977Courtesy of HYUNDAI MOTOR AMERICA
