Components And Components Location: Components

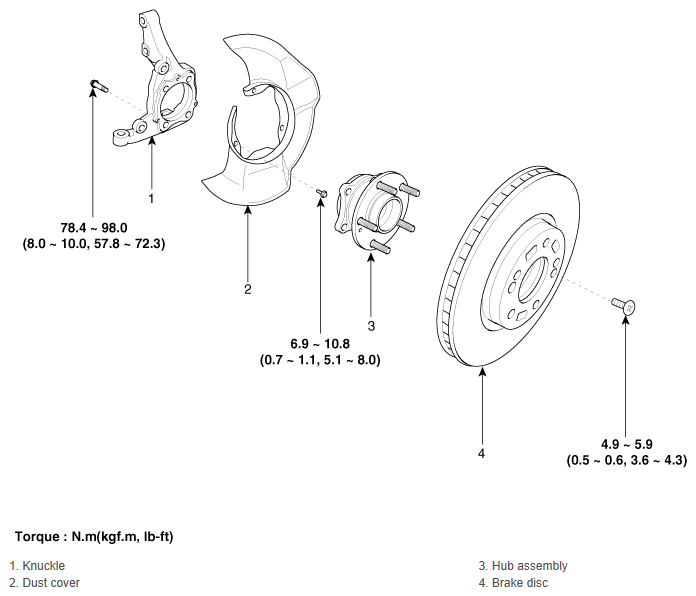

Fig 1: Front Hub/Knuckle & Tone Wheel Components Location With Torque Specifications

G12034479

Courtesy of HYUNDAI MOTOR AMERICA
