Assist Power Window Switch

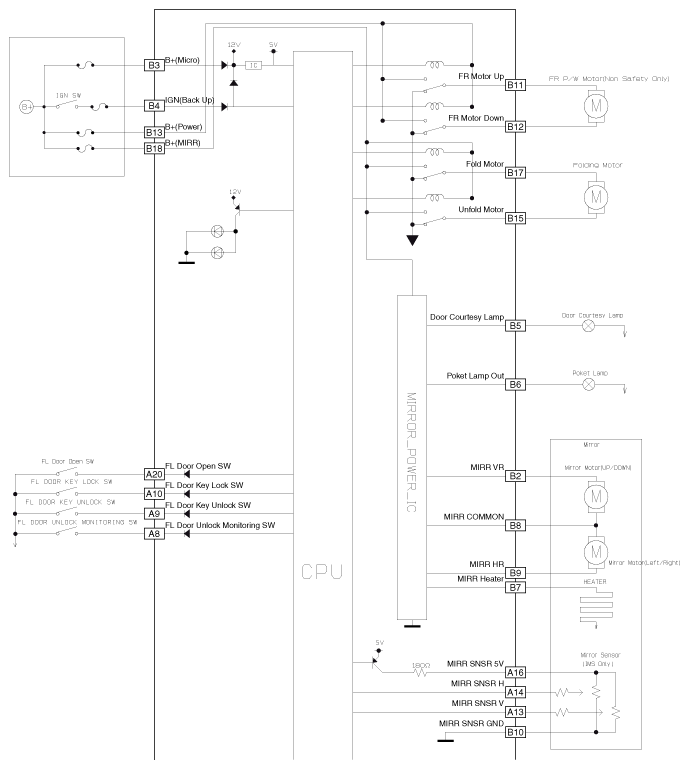

Fig 1: Assist Power Window Switch Diagram (1 Of 2)

G12036191

Courtesy of HYUNDAI MOTOR AMERICA

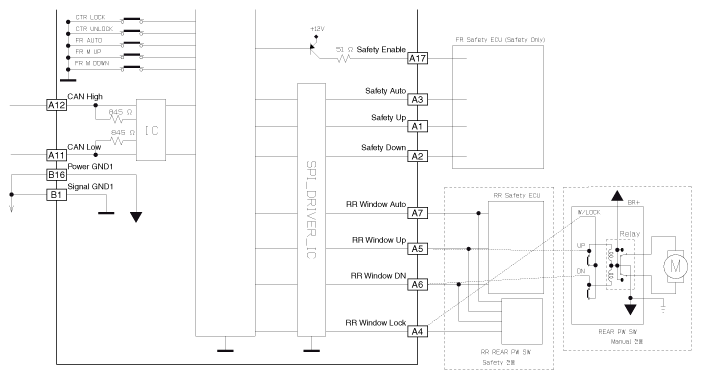

Fig 2: Assist Power Window Switch Diagram (2 Of 2)

G12036192

Courtesy of HYUNDAI MOTOR AMERICA
