Circuit Diagram

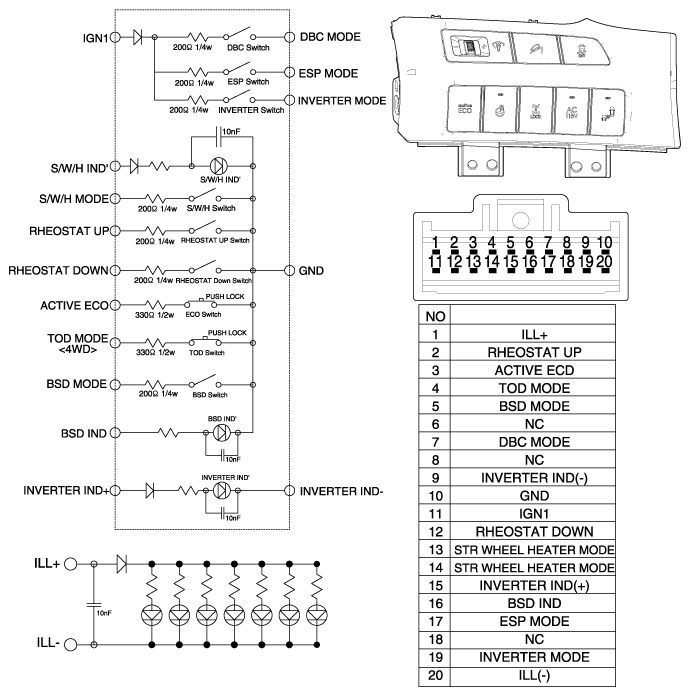

Fig 1: Blind Spot Detection Switch Diagram & Connector End View

G12036535

Courtesy of HYUNDAI MOTOR AMERICA
