Repair Procedures: Inspection

Correcting the BSD Angle

1. After replacing the BSD unit or bracket, with the bumper removed, use the BSD unit correction tool set (special tool: 09958-3T000) to perform angle correction.
   CAUTION:

   • Perform the task on a level place.
   • Perform the task after checking the tire pressure.
   • Perform the task indoors rather than outdoors so that you can identify the laser beam that is projected from a level laser (special tool: 09958-3T060).
   • The level laser (special tool: 09958-3T060) and measuring device (special tool: 09958-3T020) are sensitive to impact. If you are not using the tools, keep them in the respective cases.
2. Attach a vertical plumb (special tool: 09958-3T010) on the hood, and lower the plumb (A) to the ground so that it passes through the center of the emblem.
   Fig 1: Attaching Vertical Plumb (Special Tool; 09958-3T010) On Hood

   Courtesy of HYUNDAI MOTOR AMERICA
3. Install an optical receiver (special tool: 09958-3T020) below the plumb (A).
   Fig 2: Installing Optical Receiver (Special Tool; 09958-3T020) Plumb

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   • When you install the optical receiver (special tool: 09958-3T020), adjust the tripod (A) so that the optical receiver is level with the ground.
   • Check the level by looking through the level checking window (B).
   • Make sure that the plumb (D) is positioned above the hole (C) of the optical receiver as shown in the picture (A).
   • Make sure that the front of the optical receiver faces the rear of the vehicle.
   Fig 3: Adjusting Tripod Optical Receiver Level With Ground

   Courtesy of HYUNDAI MOTOR AMERICA

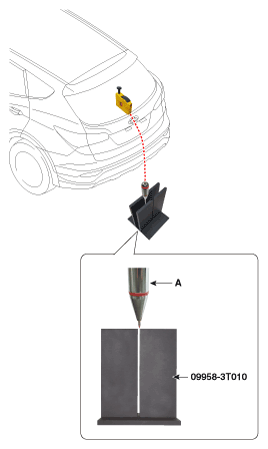

4. Attach a vertical plumb (special tool: 09958-3T010) on the trunk (or tailgate), and lower the plumb (A) to the ground so that it passes through the center of the emblem.
   Fig 4: Attaching Vertical Plumb On Trunk (Tailgate) And Lower Plumb To Ground

   Courtesy of HYUNDAI MOTOR AMERICA
5. Install the rear setting jig (special tool: 09958-3T030) so that its hole is placed directly under the plumb (A).
   Fig 5: Installing Rear Setting Jig (Special Tool; 09958-3T030) Hole Under Plumb

   Courtesy of HYUNDAI MOTOR AMERICA

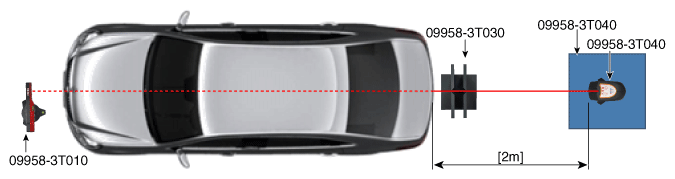

6. Place the laser support (special tool: 09958-3T040) at a location "2m" away from the rear of the vehicle and install the level laser (special tool: 09958-3T060) above the laser support.
   Fig 6: Installing Level Laser (Special Tool; 09958-3T060) Above Laser Support

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

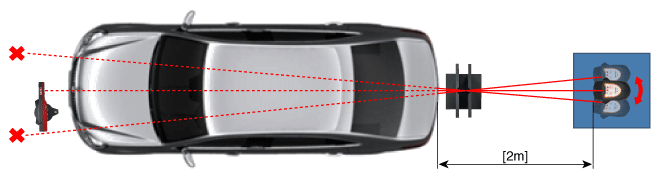

   • Move the level laser (special tool: 09958-3T060) slowly to left or right to form a center line.
   • When the laser beam goes through the hole of the rear setting jig and the level laser is placed at the center of the optical receiver, a buzzer sounds and the center line is formed on.
   Fig 7: Moving Level Laser (Special Tool; 09958-3T060) To Center Line

   Courtesy of HYUNDAI MOTOR AMERICA

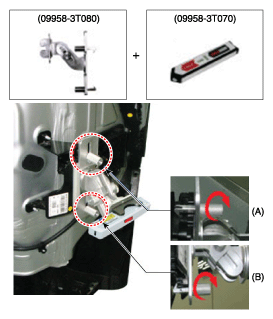

7. Mount the BSD unit fixing adaptor (special tool: 09958-3T080) on the BSD unit and fix the level laser (special tool: 09958-3T070).
   Fig 8: Mounting BSD Unit Fixing Adaptor (Special Tool; 09958-3T080) On BSD Unit

   Courtesy of HYUNDAI MOTOR AMERICA

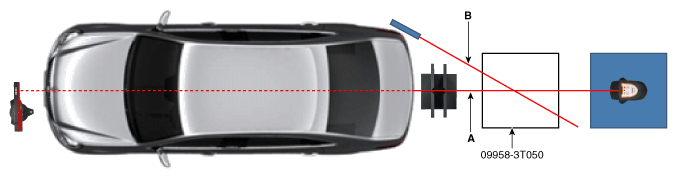

8. Install an angle measuring plate (special tool: 09958-3T050) at a location where the center line laser beam (A) and the horizontal laser beam (B) cross each other.
   Fig 9: Installing Angle Measuring Plate (Special Tool; 09958-3T050) At Center Line Laser Beam

   Courtesy of HYUNDAI MOTOR AMERICA
9. Measure the angle between the center line (A) of the angle measuring plate and the horizontal laser beam (B) using a digital protractor (special tool: 09958-3T090).

   Horizontal Angle (C):  37° ± 2°

   Fig 10: Measuring Angle Between Center Line Of Angle Measuring Plate And Horizontal Laser Beam

   Courtesy of HYUNDAI MOTOR AMERICA
10. Use a digital inclinometer (special tool: 09958-3T100) to measure the vertical angle of the BSD unit.

    Vertical Angle:  90° ± 1°

    Fig 11: Measuring Vertical Angle Of BSD Unit

    Courtesy of HYUNDAI MOTOR AMERICA
11. Measure the horizontal and vertical angles of left and right BSD units. If the measured values deviate from the specified values, insert a washer between the bracket of the BSD unit.

    Specified Values

    Horizontal Angle:  37° ± 2°

    Vertical Angle:  90° ± 1°

    Fig 12: Locating Left And Right BSD Units

    Courtesy of HYUNDAI MOTOR AMERICA
12. After checking and correcting the BSD unit angle, perform the BSD radar correction procedure.

BSD Unit Alignment

To sense the cars exactly in the next lane with the radar, the direction of the sensor and the direction of the vehicle have to align.

This is BSD unit alignment. If this alignment is not performed as below illustration, the degradation of detection performance and the cause of false alarms.

The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do this align especially.

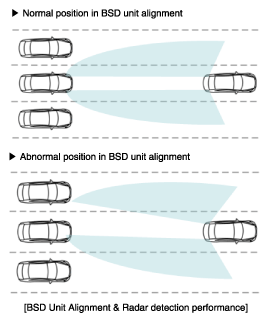

Fig 13: BSD Unit Alignment Position

Courtesy of HYUNDAI MOTOR AMERICA

1. The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do BSD unit alignment using GDS.

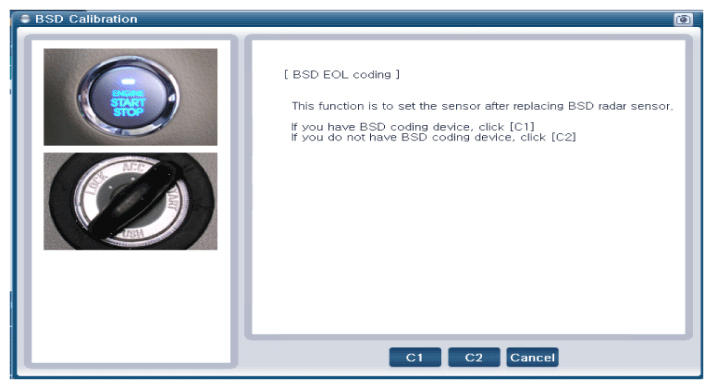

2. Select the "BSD EOL coding" procedure.

   Courtesy of HYUNDAI MOTOR AMERICA

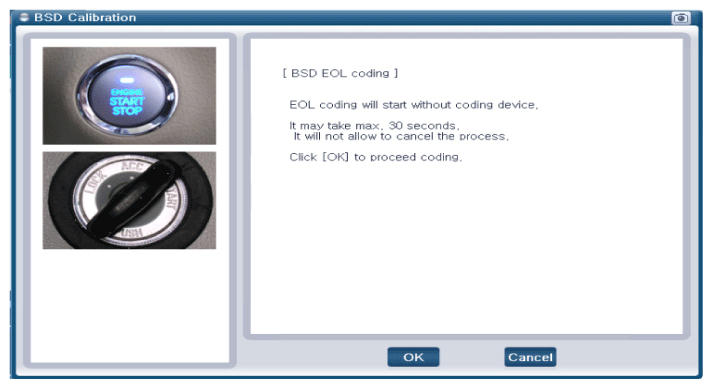

3. Complete the alignment procedure according to GDS screen message.

   Courtesy of HYUNDAI MOTOR AMERICA
