Ultra Optical Camera - Rear

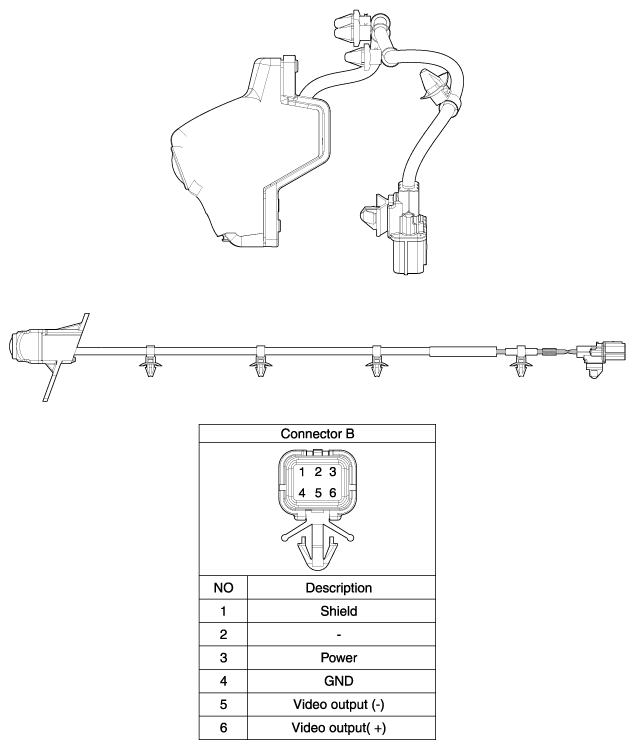

Fig 1: Ultra Optical Camera (Rear) Connector & Terminals Description Chart (1 Of 2)
G12036498Courtesy of HYUNDAI MOTOR AMERICA

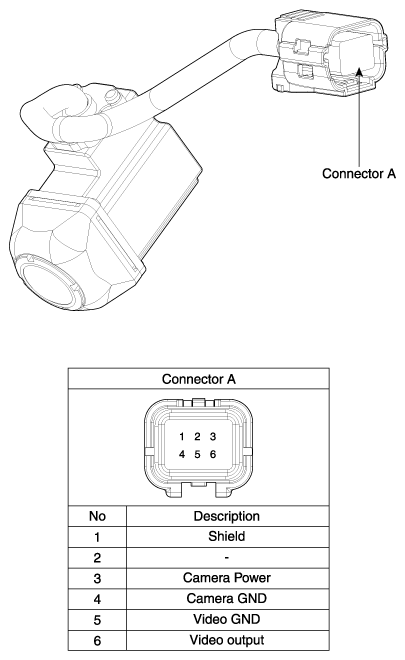

Fig 2: Ultra Optical Camera (Rear) Connector & Terminals Description Chart (2 Of 2)
G12036499Courtesy of HYUNDAI MOTOR AMERICA
