Components and Components Location: Components

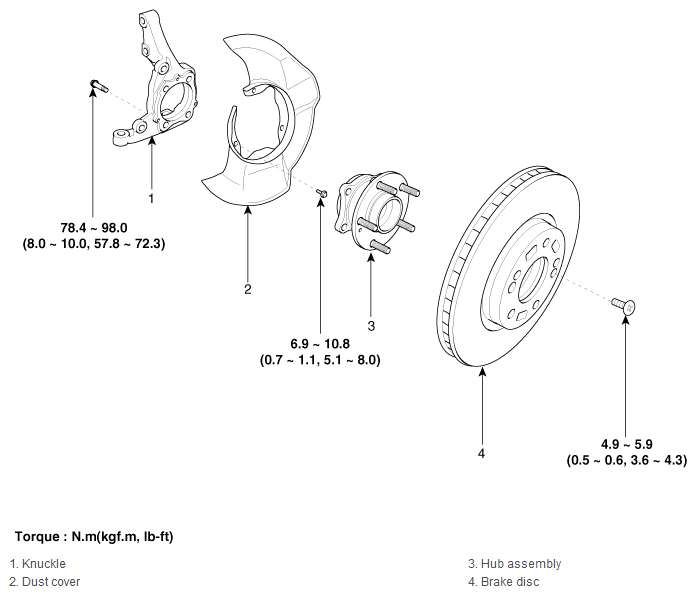

Fig 1: Exploded View Of Front Axle Assembly Components With Torque Specification

G12055900

Courtesy of HYUNDAI MOTOR AMERICA
