Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the rear bumper.
(Refer to "REAR BUMPER ")

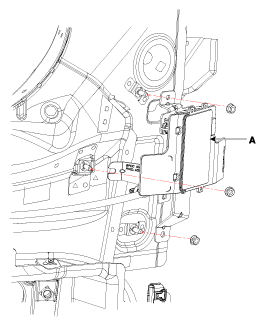

Remove the BSD unit (A) after loosening the mounting nuts.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Take care not to separate the bracket from rear bumper when removing the BSD sensor.
Replace the bracket (A) when the bracket is physically changed or damaged.
CAUTION:
- Radar does not work normally if the bracket is physically changed or damaged.
Replace the extension wiring (A) when it damaged.
