Transmitter Code Registration (Using GDS)

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G12035189Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the vehicle model and then do "CODE SAVING"

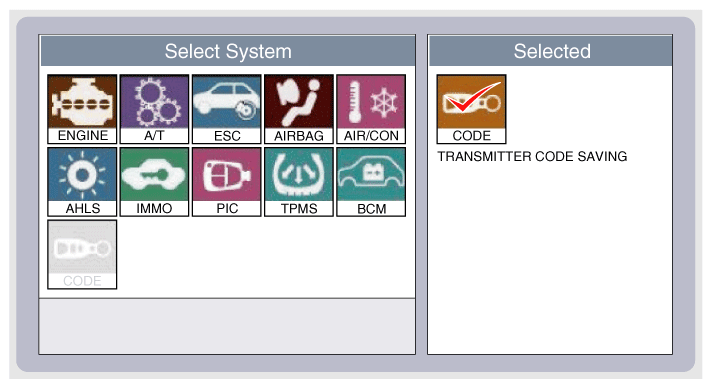

    G12035190Courtesy of HYUNDAI MOTOR AMERICA
  3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.
    G12035191Courtesy of HYUNDAI MOTOR AMERICA

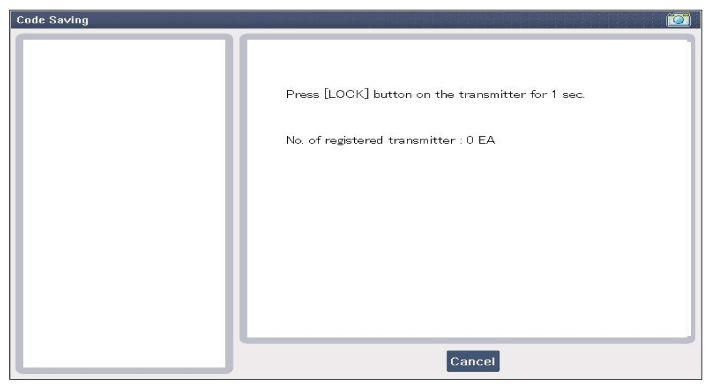

  4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps  1 to 4 and then code saving is completed.

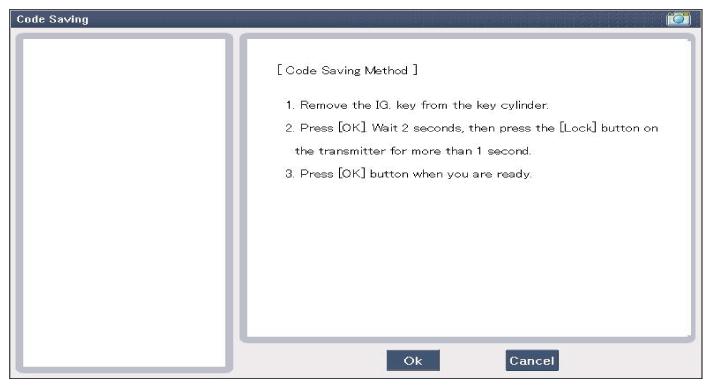

    G12035192Courtesy of HYUNDAI MOTOR AMERICA

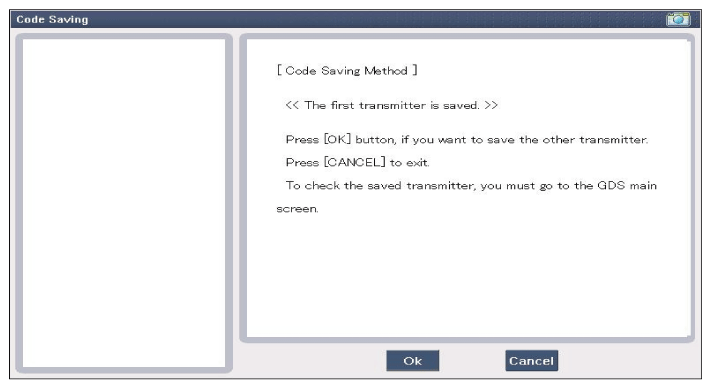

    G12035193Courtesy of HYUNDAI MOTOR AMERICA
    G12035194Courtesy of HYUNDAI MOTOR AMERICA
    G12035196Courtesy of HYUNDAI MOTOR AMERICA

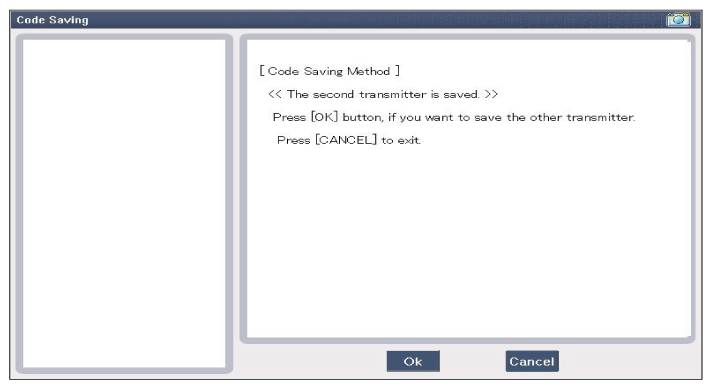

    G12035195Courtesy of HYUNDAI MOTOR AMERICA
    G12035197Courtesy of HYUNDAI MOTOR AMERICA

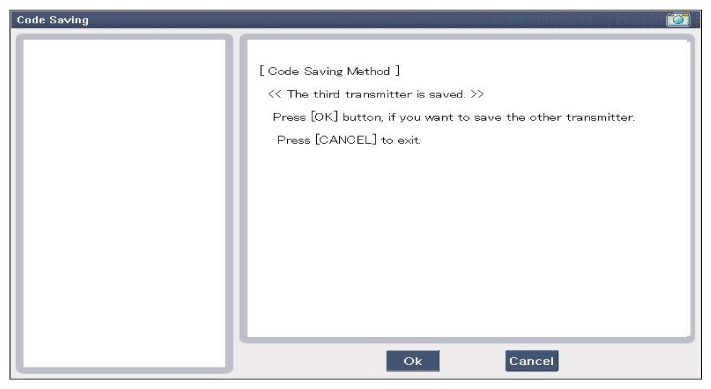

    G12035198Courtesy of HYUNDAI MOTOR AMERICA

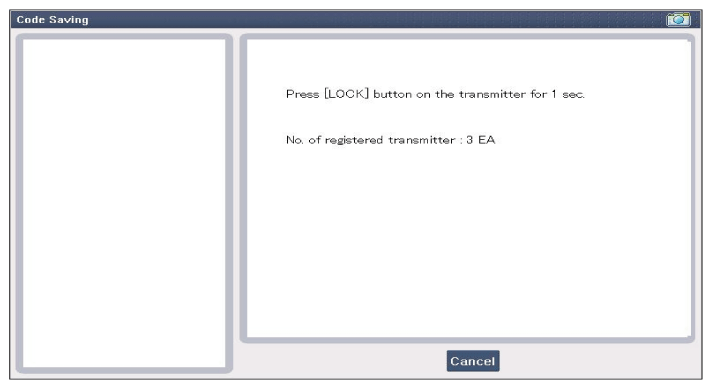

    G12035199Courtesy of HYUNDAI MOTOR AMERICA

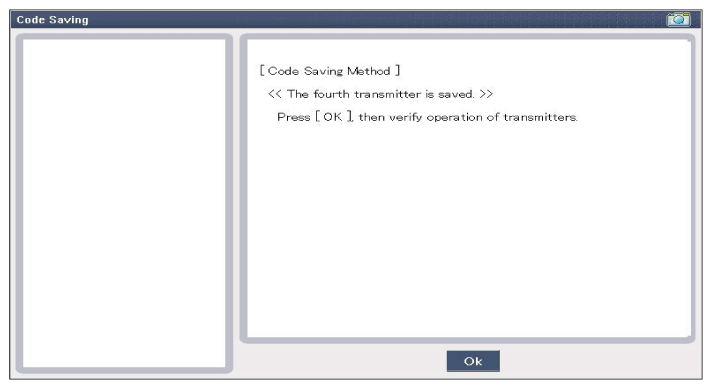

    G12035200Courtesy of HYUNDAI MOTOR AMERICA
