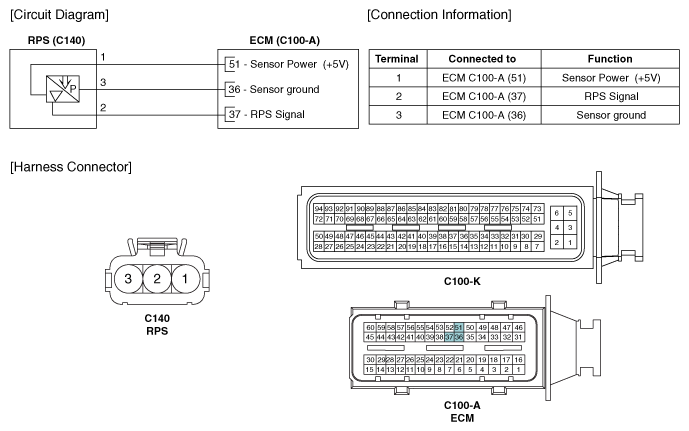

Home >> Hyundai >> 2017 >> Ioniq Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram
