Circuit Diagram

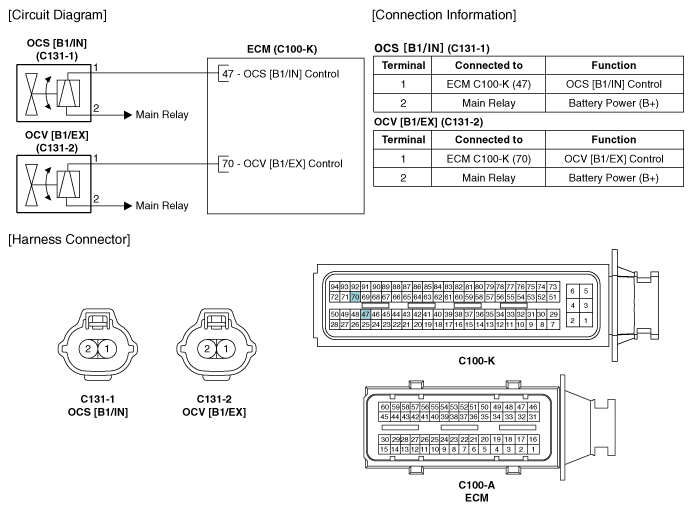

Fig 1: CVVT Oil Control Valve Circuit Diagram

G12111467

Courtesy of HYUNDAI MOTOR AMERICA
