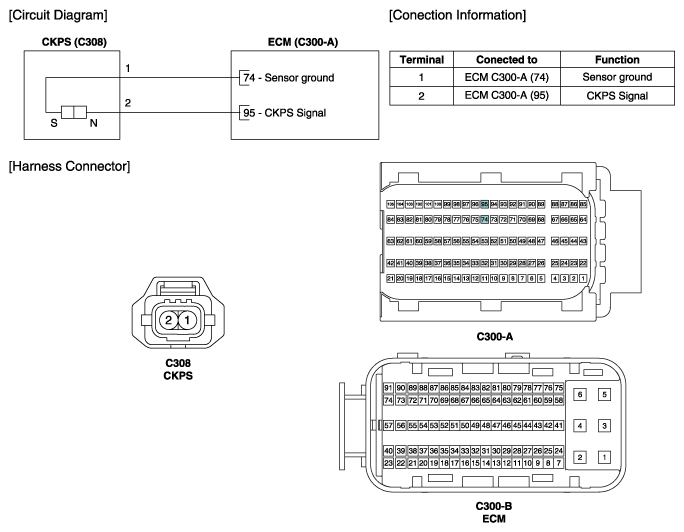

Home >> Hyundai >> 2017 >> Elantra Value Edition >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram
