Schematic Diagrams: Notes

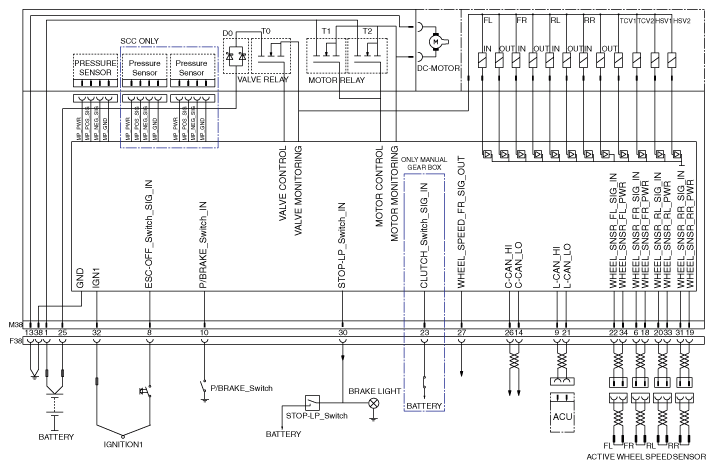

Fig 1: Electronic Stability Control System Schematic

G12027063

Courtesy of HYUNDAI MOTOR AMERICA
