Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:

Connect self-diagnosis connector (16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

Select the "vehicle model" and "ABS/ESC" on GDS vehicle selection screen, then select OK.

[Variant Coding]

Fig 1: Scantool Display - Vehicle S/W Management

Courtesy of HYUNDAI MOTOR AMERICA

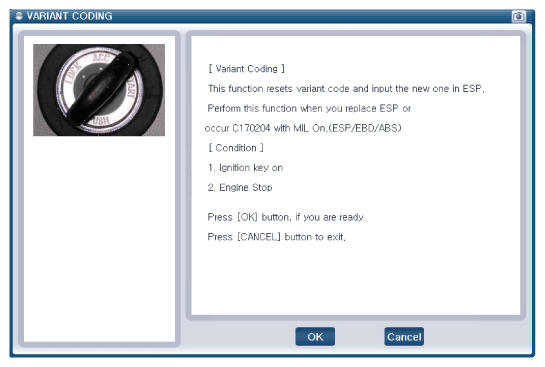

Fig 2: Scantool Display - Variant Coding

Courtesy of HYUNDAI MOTOR AMERICA

[Auto Detected Sensor Calibration]

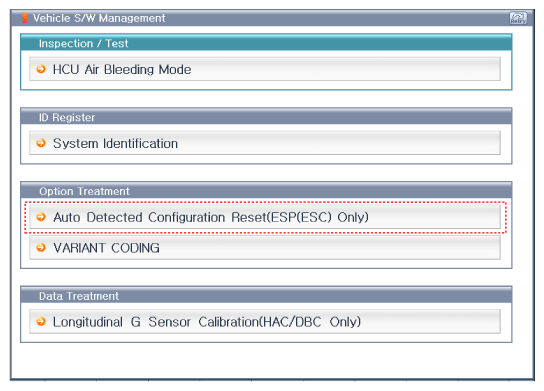

Fig 3: Scantool Display - Vehicle S/W Management

Courtesy of HYUNDAI MOTOR AMERICA

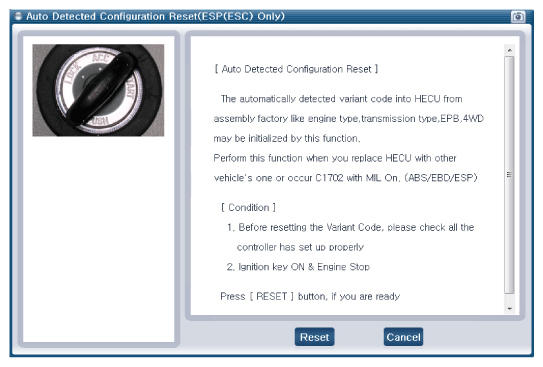

Fig 4: Scantool Display - Auto Detected Calibration Reset

Courtesy of HYUNDAI MOTOR AMERICA

[Longitudinal G Sensor Calibration]

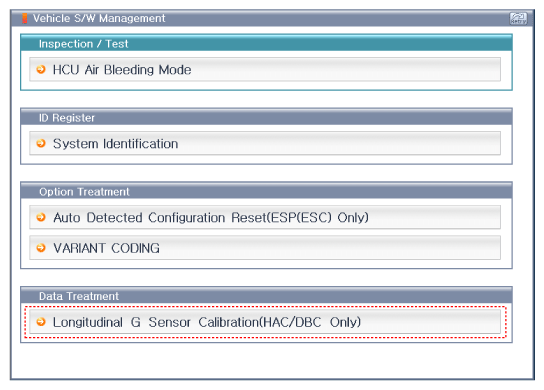

Fig 5: Scantool Display - Vehicle S/W Management

Courtesy of HYUNDAI MOTOR AMERICA

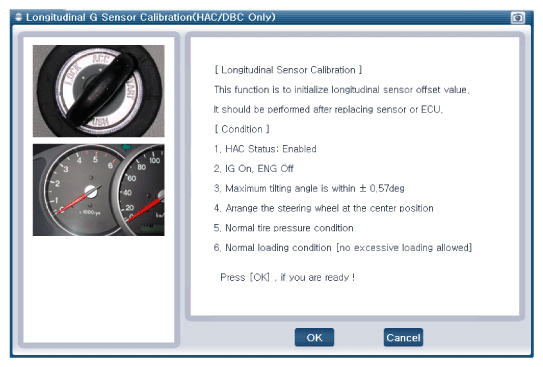

Fig 6: Scantool Display - Longitudinal G Sensor Calibration

Courtesy of HYUNDAI MOTOR AMERICA
