[Driver Power Window Switch (Auto Down)]

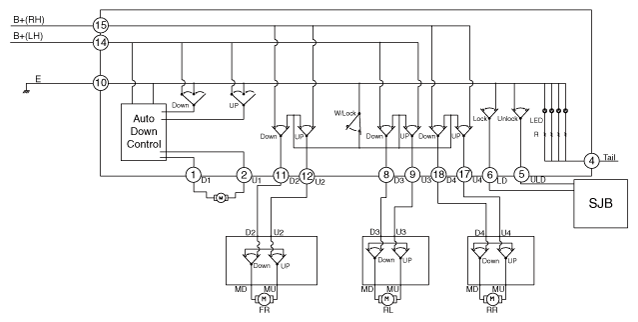

Fig 1: Driver Power Window Switch Circuit (Auto Down)

G12023610

Courtesy of HYUNDAI MOTOR AMERICA
