Description And Operation: Description: Notes

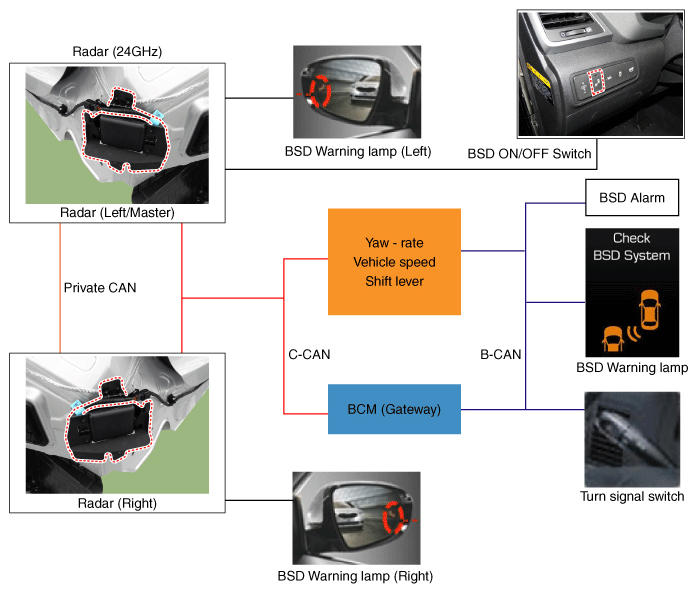

BSD is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing and (visual and auditory) alarm of any vehicle coming into the blind spot.
- Blind Spot Detection (BSD): Senses other vehicles in the BSD zone and the display a BSD warning lamp on the side mirror for the driver.
Warning lamp is blink ON when driver turns on the turn signal lamp to enter the lane where another vehicle is.
- Lane Change Assist (LCA): Senses other high-speed access vehicles in the LCA zone and the display a BSD warning lamp on the side mirror for the driver.
Warning lamp is blink ON when driver turns on the turn signal lamp without recognizing any sudden approaching vehicle from that direction.
- Rear Cross Traffic Alert (RCTA): It generates the alarming to the vehicle approaching from the rear and side during driving the vehicle backwards.
