[Auto A/C]

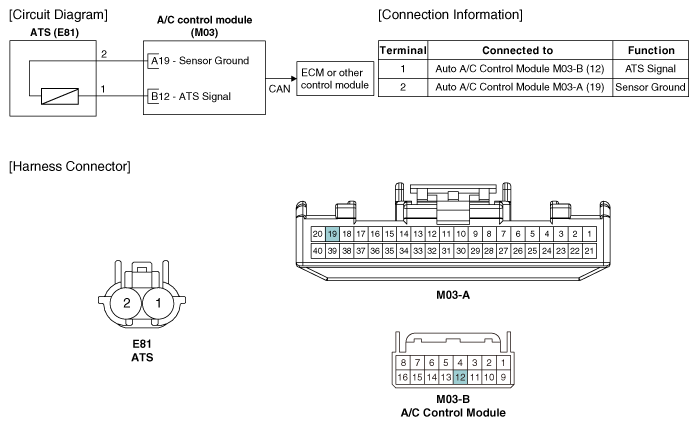

Fig 1: Ambient Temperature Sensor Circuit (Auto A/C)

G12024184

Courtesy of HYUNDAI MOTOR AMERICA
