Components And Components Location: Components

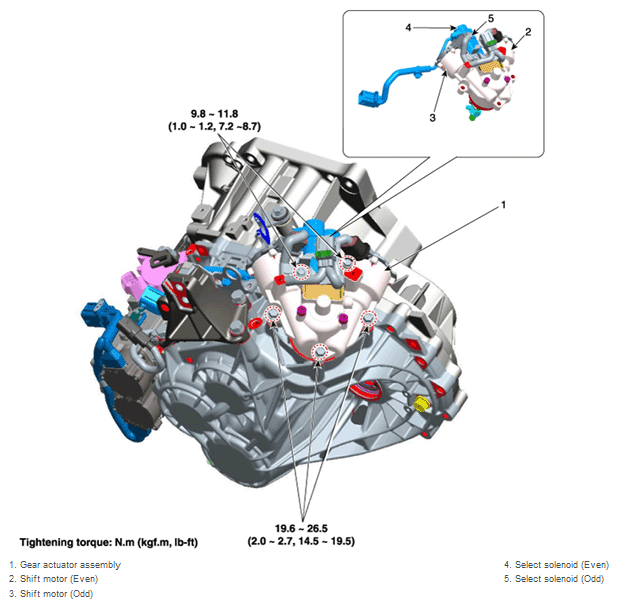

Fig 1: Gear Actuator Assembly Components With Torque Specification

G12025801

Courtesy of HYUNDAI MOTOR AMERICA
