Home >> Hyundai >> 2017 >> Elantra GT Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Engine And Transaxle Assembly (R & I) >> Engine Mounting >> Components And Components Location

Components And Components Location

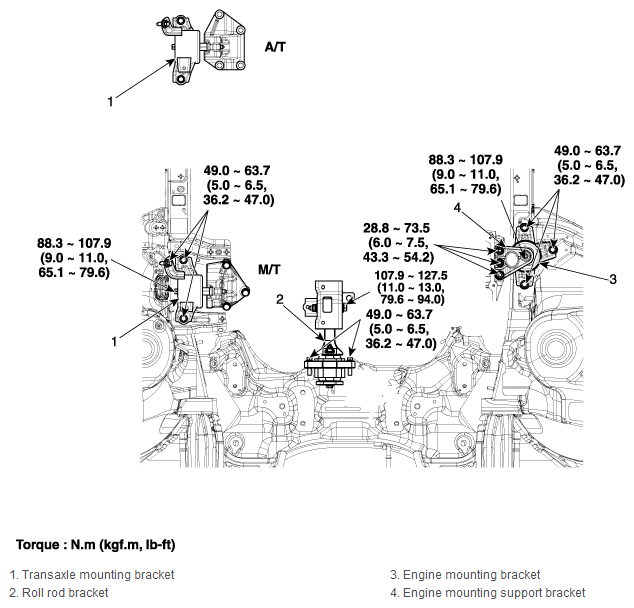

Fig 1: Engine Mounting Components With Torque Specification

G12074005

Courtesy of HYUNDAI MOTOR AMERICA
