Circuit Diagram: (A/T)

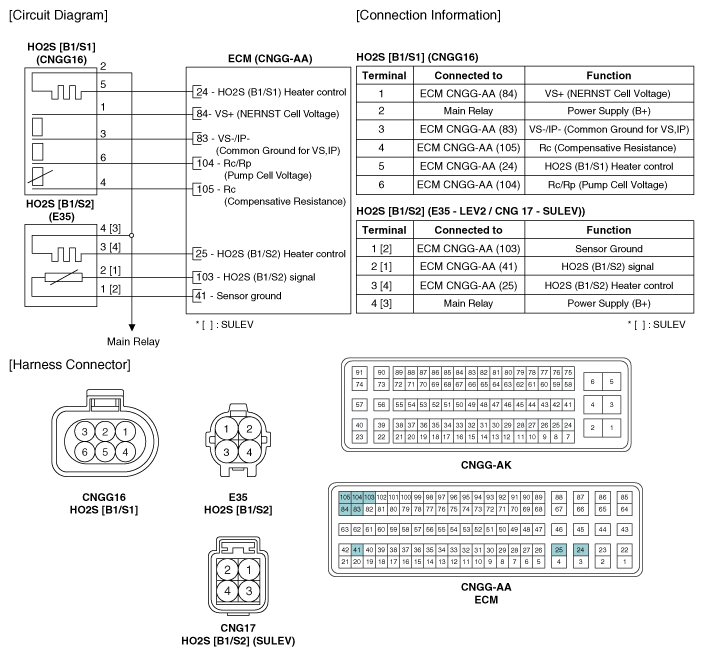

Fig 1: Heated Oxygen Sensor (HO2S) Circuit (A/T)

G12066324

Courtesy of HYUNDAI MOTOR AMERICA
