Repair Procedures: Installation

  1. Install the back view camera.
    CAUTION: When installing a backview camera, be sure that the wire (A) does not get caught in or be pressed under the camera. The lead wire must be fixed to the camera. Check the condition of the wiring fix clip (B).

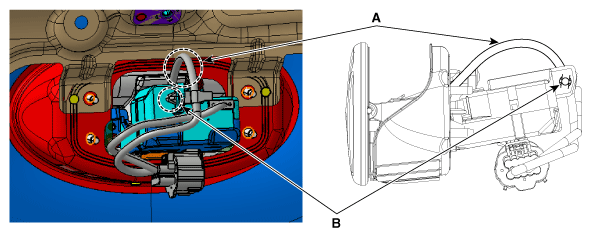

    Fig 1: Checking Condition Of Wiring Fix Clip
    G12077030Courtesy of HYUNDAI MOTOR AMERICA
  2. Fix the back view camera wiring clip and connect the connector.
  3. Install the tailgate trim.
