Home >> Hyundai >> 2017 >> Elantra Eco >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.4L >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

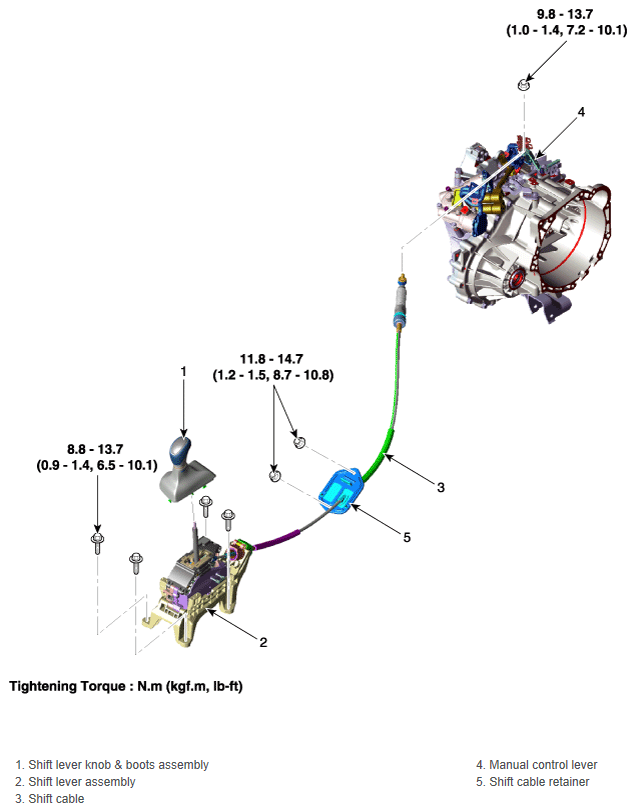

Fig 1: Shift Cable Components With Torque Specification

G12021016

Courtesy of HYUNDAI MOTOR AMERICA
