Components And Components Location: Components

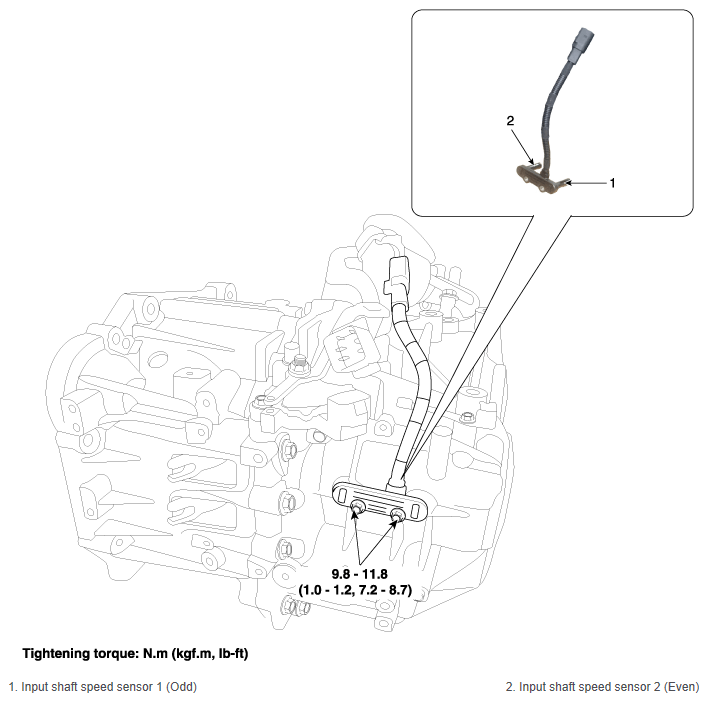

Fig 1: Input Shaft Speed Sensor 2 Components With Torque Specification

G12020987

Courtesy of HYUNDAI MOTOR AMERICA
