Control System Logic

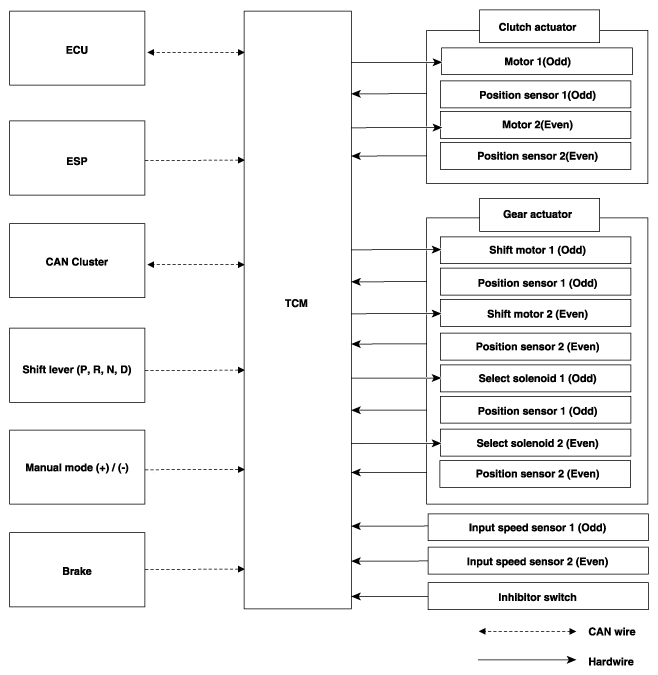

Fig 1: Dual Clutch Transmission Control System Communication Diagram

G12020933

Courtesy of HYUNDAI MOTOR AMERICA
