Components Location

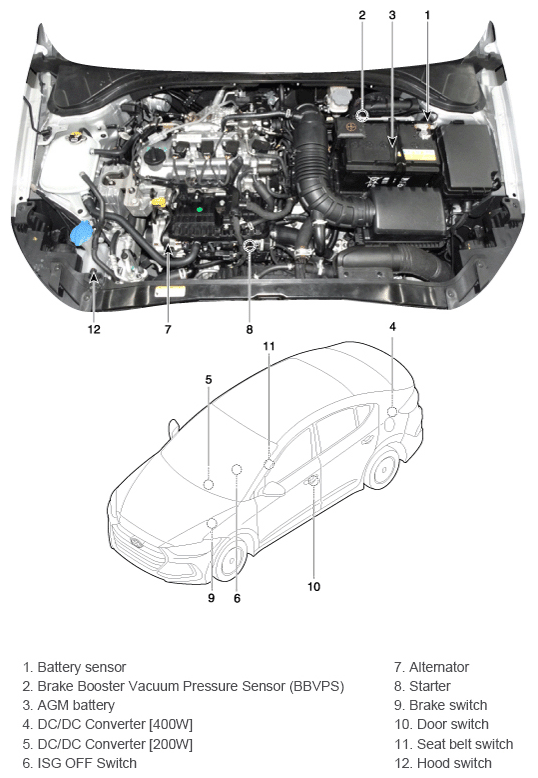

Fig 1: Idle Stop & Go System Components (1 Of 3)
G12020663Courtesy of HYUNDAI MOTOR AMERICA

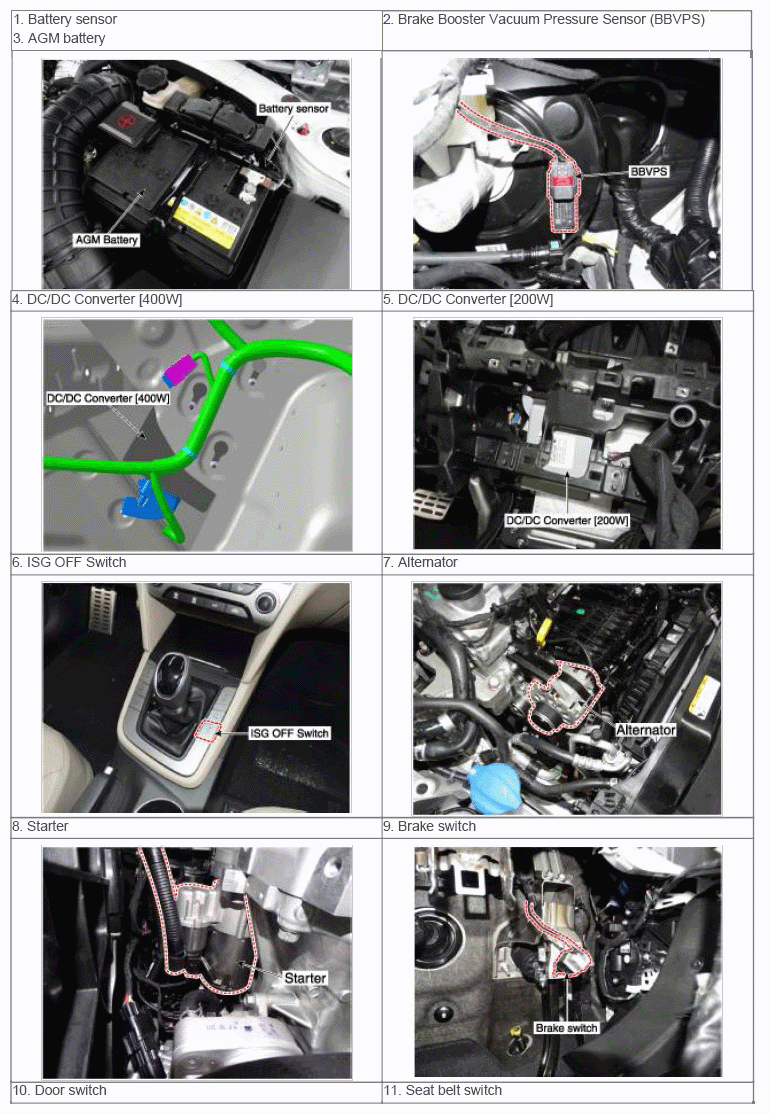

Fig 2: Idle Stop & Go System Components (2 Of 3)
G12020664Courtesy of HYUNDAI MOTOR AMERICA

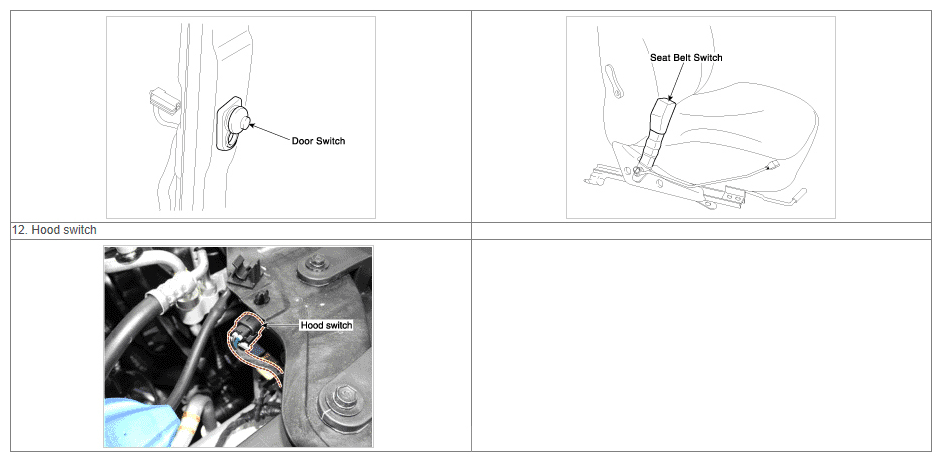

Fig 3: Idle Stop & Go System Components (3 Of 3)
G12020665Courtesy of HYUNDAI MOTOR AMERICA
