Components And Components Location: Components

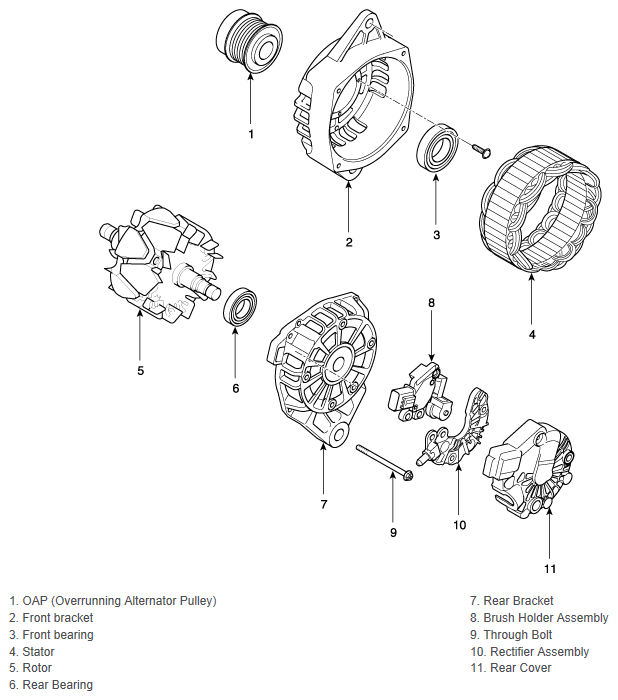

Fig 1: Alternator Components

G12020745

Courtesy of HYUNDAI MOTOR AMERICA
