Steering Angle Sensor Reset (Service Campaign T4A) (T4A)

Publication date: 2019-10-22
Reference number: T4A
Supersedes refnos: 19-01-031H

STEERING ANGLE SENSOR RESET (SERVICE CAMPAIGN T4A)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 19-01-031H, Date of Issue: October 22, 2019

HYUNDAI:	2017-2018 Santa Fe (NC); 2016 Veloster (FS); 2014 Elantra (MD); 216-2017 Azera (HG)
GROUP:	CAMPAIGN

SERVICE INFORMATION

IMPORTANT: *** Retail Vehicles ***
Dealers must perform this Service Campaign on all affected vehicles whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

DESCRIPTION

Certain 2017-2018 MY Santa Fe (NC), 2016MY Veloster (FS), 2014MY Elantra (MD), and 2016-2017MY Azera (HG) vehicles may experience a warning lamp being illuminated intermittently when starting the engine after replacing the motor driven power steering (MDPS) column & housing. This bulletin describes the procedure to perform the steering angle sensor (SAS) reset using the GDS.

Applicable Vehicles: Certain 2017-2018MY Santa Fe (NC), 2016MY Veloster (FS), 2014MY Elantra (MD), and 2016-2017MY Azera (HG) vehicles.

WARRANTY INFORMATION

Model	Op. Code	Operation	Op. Time	Causal Part	Nature Code	Cause Code
Santa Fe (NC) Veloster (FS) Elantra (MD) Azera (HG)	90C021R0	Steering Angle Sensor Reset	0.3 M/H	13381-08003	I3A	ZZ3

NOTE: 1: Submit Claim on Campaign Claim Entry Screen

NOTE: 2: If a part is found in need of replacement while performing Service Campaign T4A and the affected part is still under warranty, submit a separate claim using the same Repair Order. If the affected part is out of warranty submit a Prior Approval Request for goodwill consideration prior to performing the work.

SERVICE PROCEDURE

Connect the GDS or GDS-M.

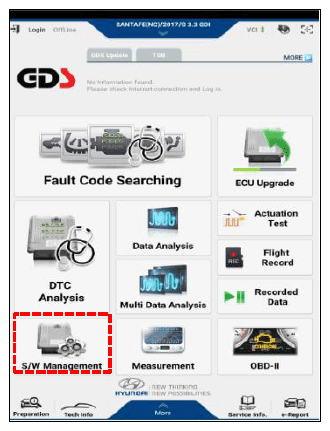

Select 'S/W Management ' on the screen.

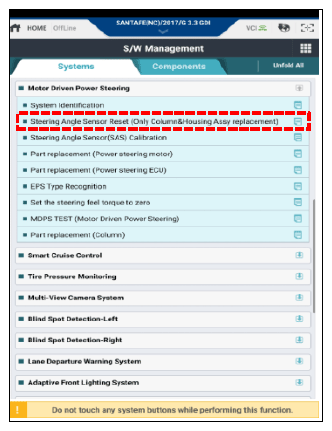

Select 'Steering Angle Sensor Reset '.

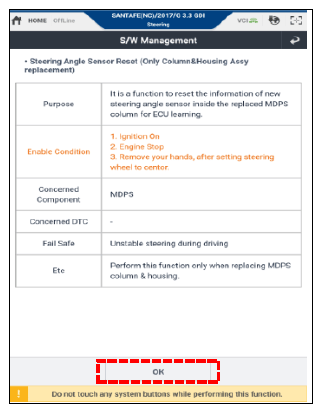

Review the overview then select 'OK '.

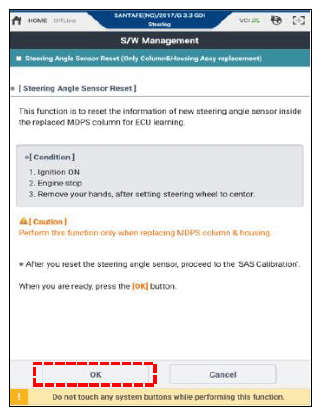

Check the conditions and select 'OK '.

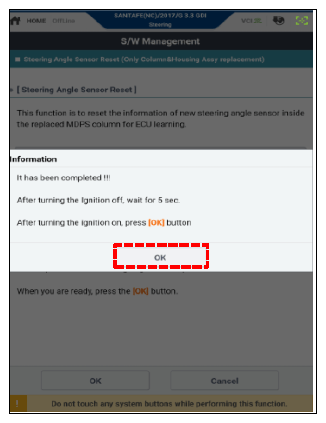

Turn the ignition OFF and wait for 5 seconds. Then turn ignition back ON .
Select 'OK ' to complete the Steering Angle Sensor Reset function.

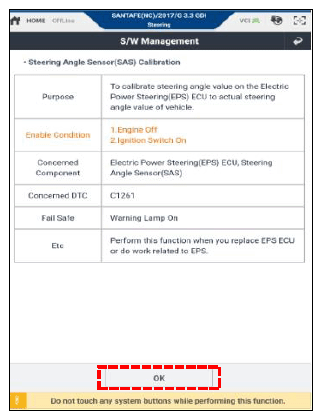

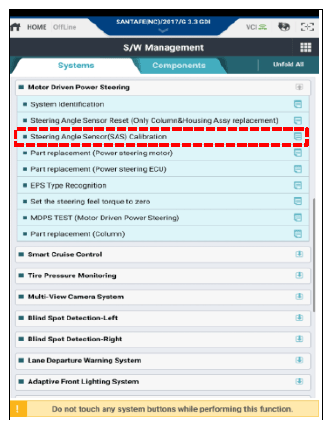

Next, from the S/W Management screen, select 'Steering Angle Sensor (SAS) Calibration '.

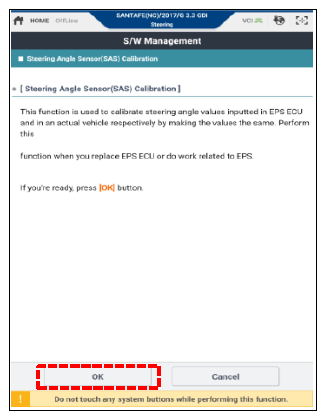

Review the overview then select 'OK '.
Review the overview then select 'OK '.

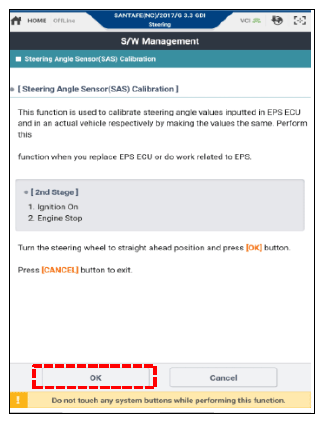

Check the conditions and select 'OK '.
Turn the ignition OFF and wait for 15 seconds. Then turn ignition back ON .

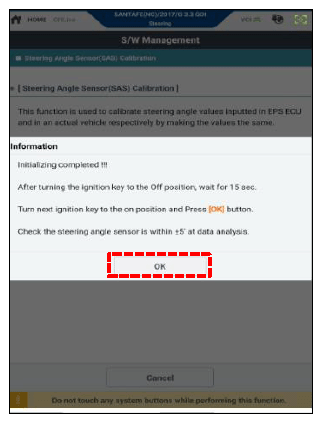

Select 'OK ' to complete the Steering Angle Sensor (SAS) Calibration function.
