System Inspection

■ Check Generator circuit

1. Engine starts.
2. Maintain ENG RPM 2, 500RPM over 2 minutes.
3. Measure voltage between the battery terminal (+) and the battery terminal (-).

   Specification:  Approx. 12.5 ~ 14.7V

   Fig 1: Measuring Voltage Between Battery Terminal (+) And Battery Terminal (-)

   Courtesy of HYUNDAI MOTOR AMERICA

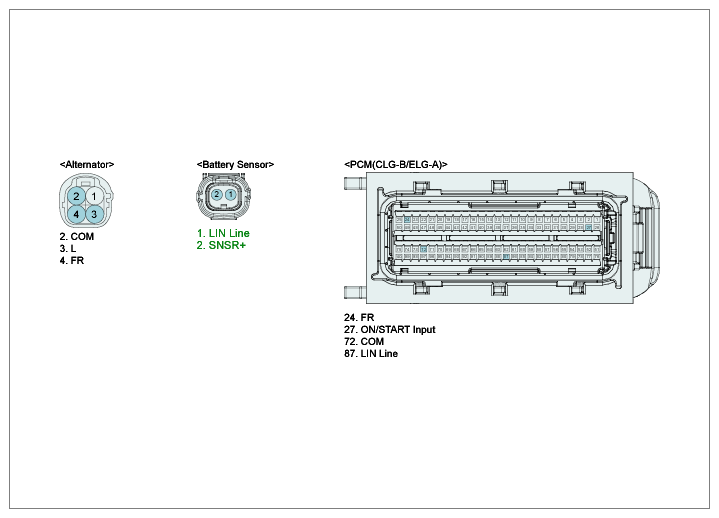

   Fig 2: Generator Connector End View

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Check for Battery State, repair as necessary and go to "Verification of Vehicle Repair " procedure below.

   NO

   • Check that the tension of drive belt, ENG RPM, fuse, terminal of battery, all terminals of generator are in good condition and Check for damaged harness and poor connection between generator and battery. If OK repair or replace generator and then go to "Verification of Vehicle Repair " procedure below.
