Component Inspection

■ Check VIS2

  1. IG "OFF" and disconnect VIS2 connector.
  2. Measure resistance between power and control terminals of VIS2 connector. (Component side)

    Specification:  30 ~ 35 Ω (22°C/71.6°F)

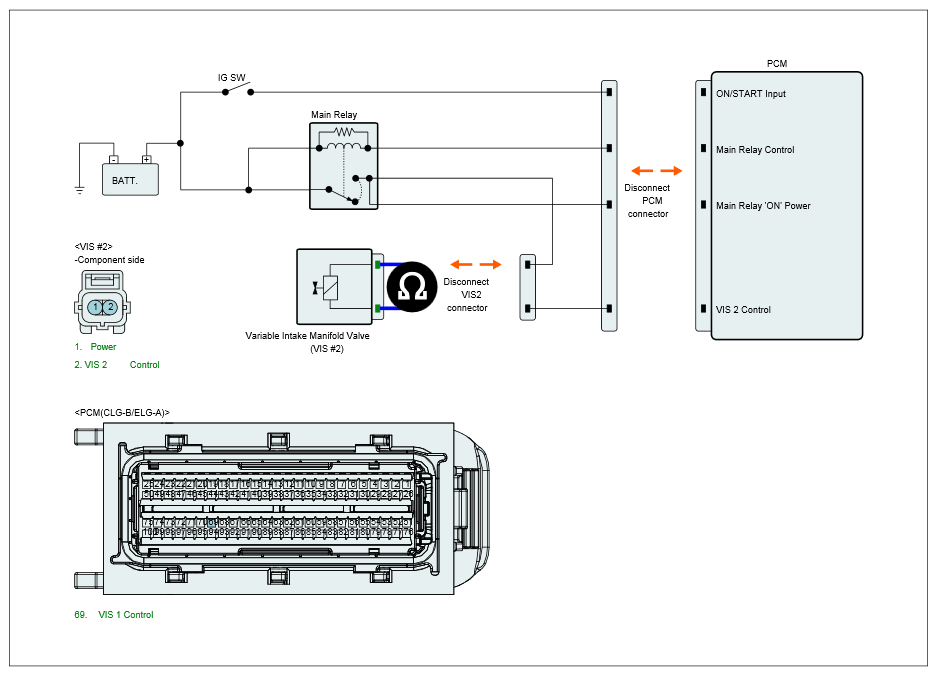

    Fig 1: Measuring Resistance Between Power And Control Terminals Of VIS2 Connector (Component Side)
    G12090167Courtesy of HYUNDAI MOTOR AMERICA
  3. Is the measured resistance within specification?

    YES

    • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair " procedure.

    NO

    • Substitute with a known - good VIS2 and check for proper operation. If the problem is corrected, replace VIS2 and go to "Verification of Vehicle Repair " procedure.
