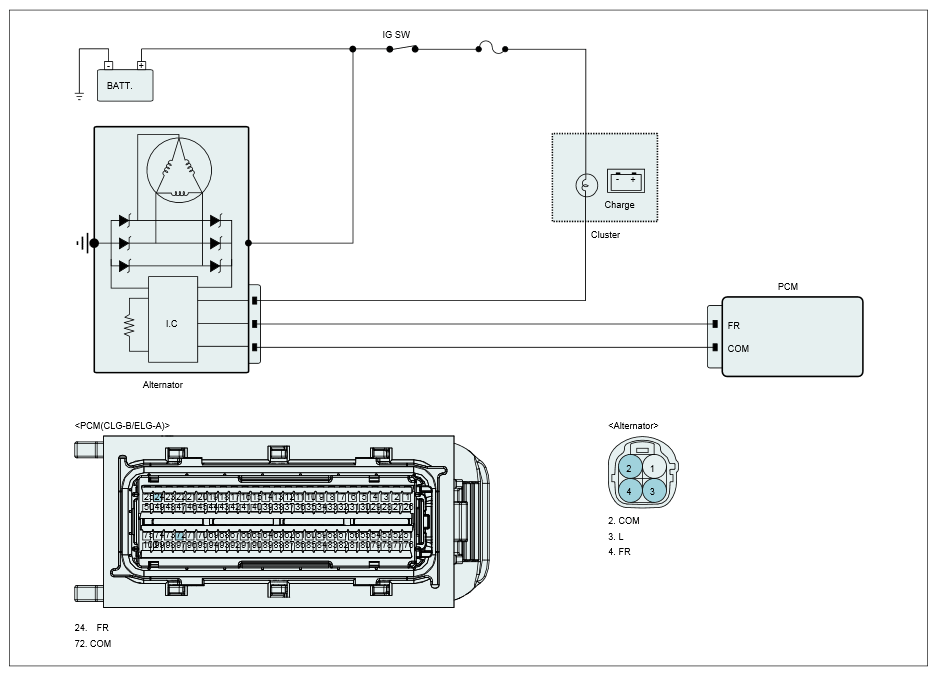

Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P0620: Alternator Control Circuit >> General Information >> Diagnostic Circuit Diagram
