Control Circuit Inspection

■ Check voltage

1. IG "OFF". Remove fuel pump relay.
2. IG "ON".
3. Measure voltage between fuel pump relay control terminal of Fuel pump relay harness and chassis ground.

   Specification:  Approx. 2.5V

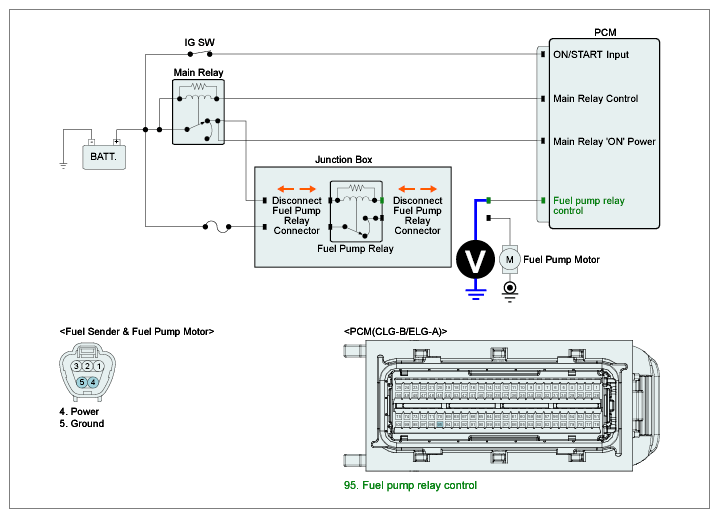

   Fig 1: Measuring Voltage Between Fuel Pump Relay Control Terminal Of Fuel Pump Relay Harness And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Component Inspection " procedure below.

   NO

   • Repair open or short as necessary and then, go to "Verification of Vehicle Repair " procedure.
