Schematic Diagram

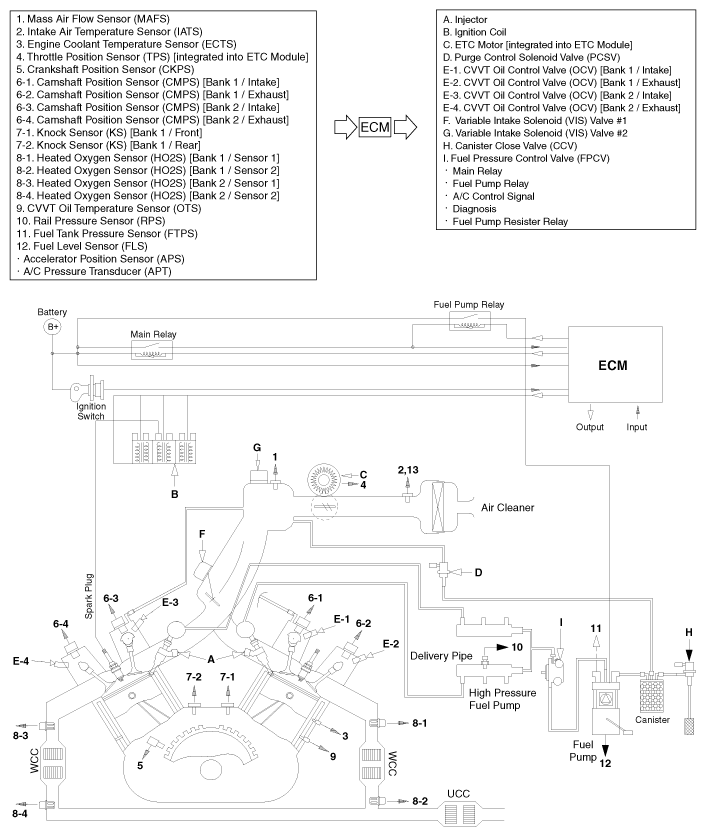

Fig 1: Engine Control System Schematic

G12089176

Courtesy of HYUNDAI MOTOR AMERICA
