Rear Power Window Switch

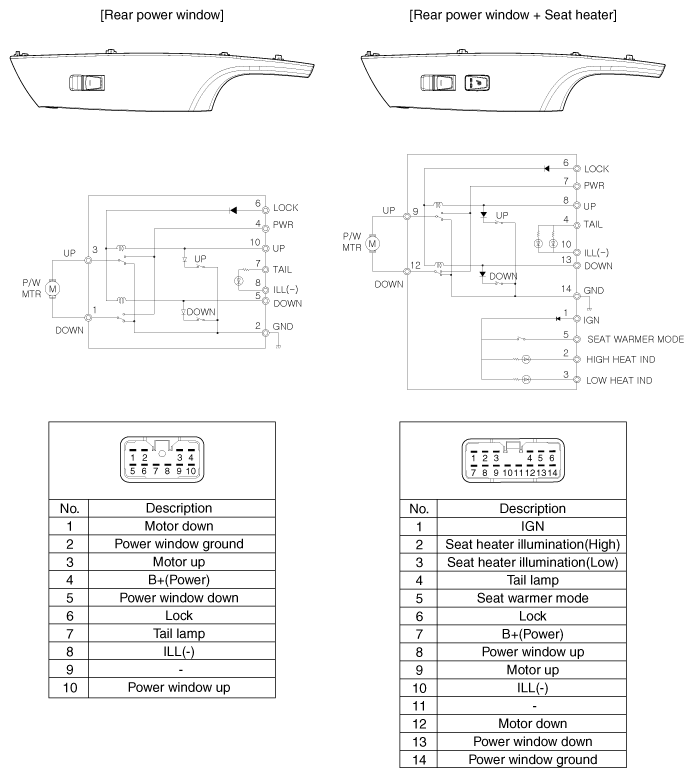

Fig 1: Rear Power Window Switch Circuit

G12093049

Courtesy of HYUNDAI MOTOR AMERICA
