Front Safety Window

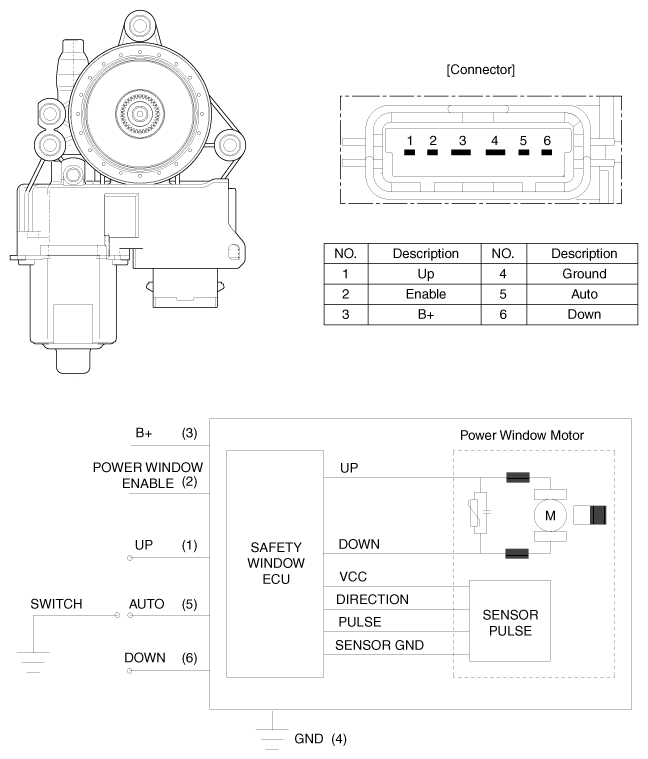

Fig 1: Power Window Motor Circuit Diagram - Front Safety Window

G12093040

Courtesy of HYUNDAI MOTOR AMERICA
