Teaching MODE Procedure Description (Step By Step)

Objective: Key teaching procedure at service station

Initial state:

• SMK replacement: SMK is not learnt, ESCL and SMART FOB are already learnt with same PIN code
• ESCL replacement: ESCL is not learnt, SMK and SMART FOB are already learnt with same PIN code
• Additional or new keys teaching: SMK and ESCL are already learnt with same PIN code

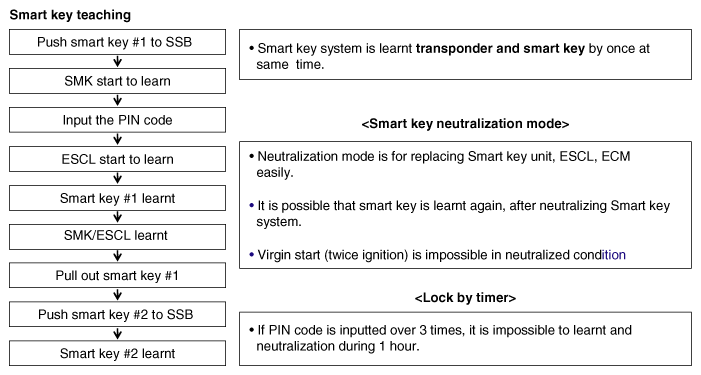

Fig 1: Smart Key Teaching Procedure Chart

Courtesy of HYUNDAI MOTOR AMERICA
