Repair Procedures: Inspection

  1. The windshield wiper/washer switch inputs can be checked using the GDS.
  2. To check the input value of windshield wiper/washer switch, select option "MFSW".
  3. To consult the present input/output value of IPM, "Current DATA". It provides information of IPM input/output conditions of windshield wiper/washer switch.

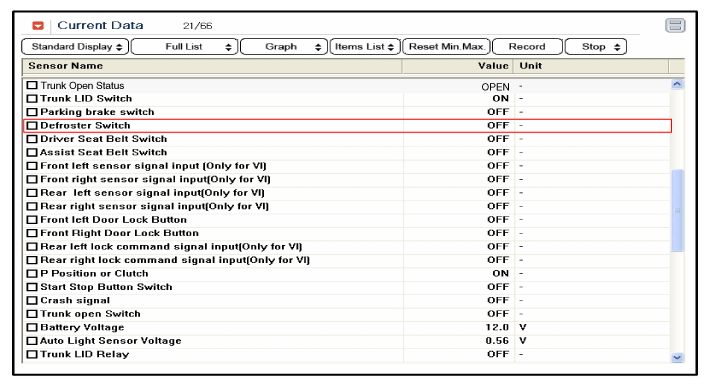

Fig 1: Screen Display - Current Data
G12093080Courtesy of HYUNDAI MOTOR AMERICA
