Repair Procedures: Inspection

  1. The windshield deicer switch inputs can be checked using the GDS.
  2. To check the input value of windshield deicer switch, select option "IPM".
  3. Select option "Current Data".

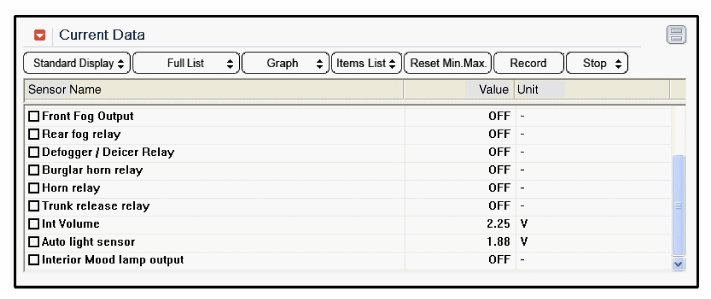

    Fig 1: Scantool Display - Current Data
    G12093063Courtesy of HYUNDAI MOTOR AMERICA
  4. To check the input value of windshield deicer switch in force mode, select option.

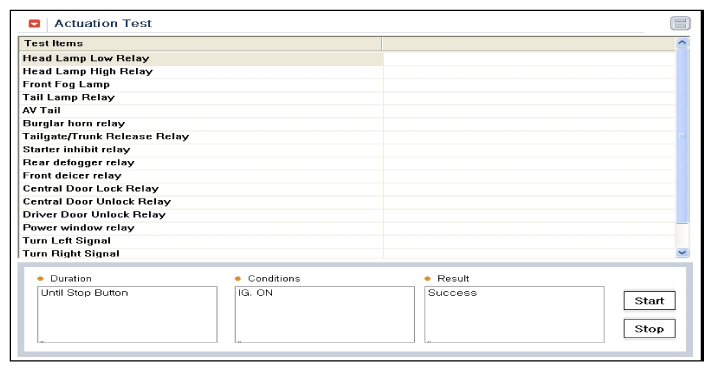

Fig 2: Scantool Display - Actuation Test
G12093064Courtesy of HYUNDAI MOTOR AMERICA
