General Information: General Description
Cluster memorizes what kinds of control unit are installed on through the CAN-BUS. Vehicle Optional information is memorized in cluster by EOL Coding procedure in the End of Line. DTC will be set if the optional information is different when compared between memorized optional information from CAN-BUS and optional information sent by EOL. In the assembly line, EOL communication will be finished in case that DTC is not set during DTC searching.
In service field, it is necessary to set cluster by using variant coding procedure with GDS in order to synchronize the optional parts on the vehicle after replacing cluster.

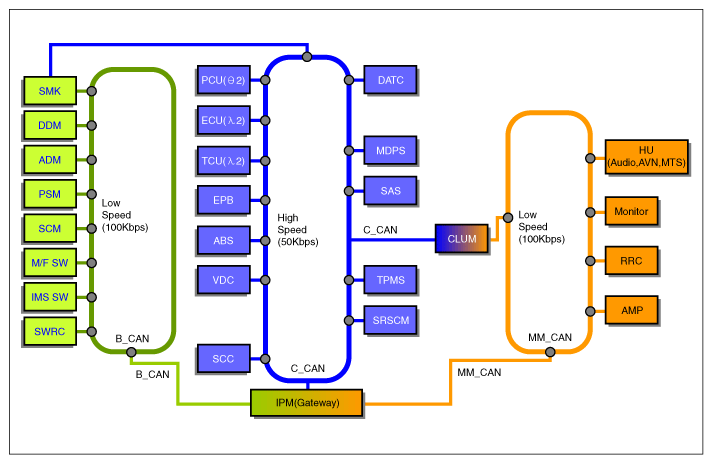

IPM: Intelligent integrated Platform Module SMK: Smart Key DDM: Driver Door Module ADM: Assistant Door Module PSM: Power Seat Module MFSW: Multi-Function Switch SWRC: Steering Wheel Remote Controller IMS SW: Integrated Memory System Switch SCM: Steering Column Module PCU: Power-train Control Unit ECU: Engine Control Unit EPB: Electronic Parking Brake ABS: Anti-lock Brake System ESC: Electronic Stability Control SCC: Smart Cruise Control CLUM: Cluster Module DATC: Dual Automatic Temp. Control SCC: Smart Cruise Control MDPS: Motor Driven Power Steering SAS: Steering Angle Sensor TPMS: Tire Pressure Monitoring System SRSCM: Supplemental Restraints System Control Module HU: Head Unit RRC: Rear Remote Control AMP: Amplifier
