Signal Waveform & Data

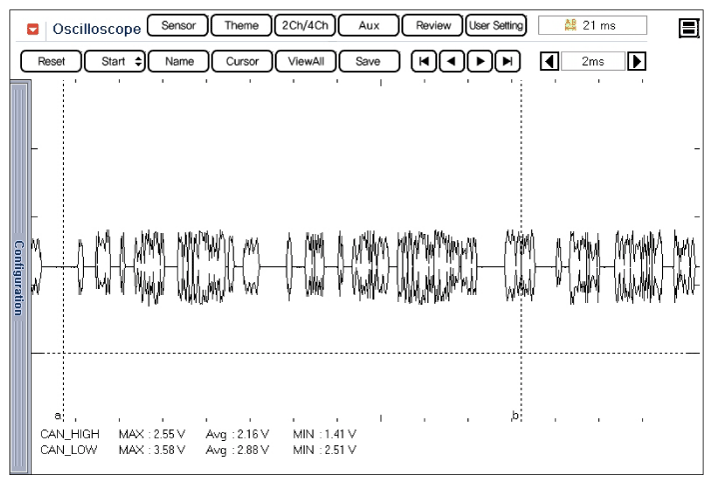

Fig 1: Screen Display - C-CAN Low/High Signal Waveform

G12085004

Courtesy of HYUNDAI MOTOR AMERICA

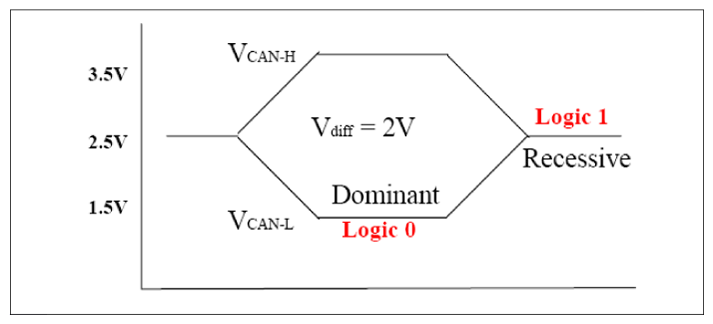

Fig 2: C-CAN Bus Voltage Level (High Speed CAN)

G12085005

Courtesy of HYUNDAI MOTOR AMERICA
