Circuit Diagram

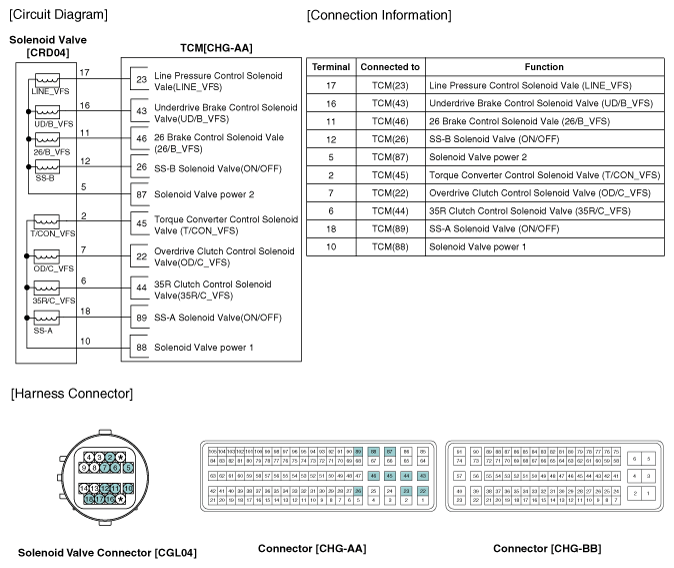

Fig 1: Overdrive Clutch Control Solenoid Valve Diagram And Connector End View
G12019114Courtesy of HYUNDAI MOTOR AMERICA
