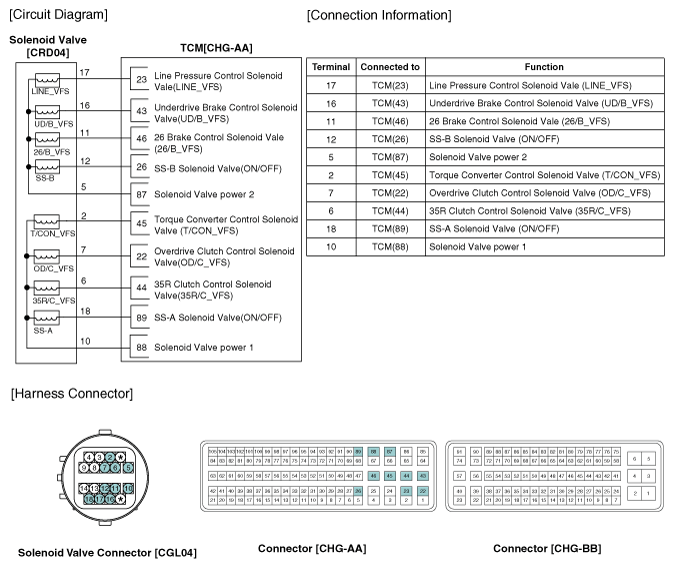

Home >> Hyundai >> 2017 >> Accent Value Edition >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> 26 Brake Control Solenoid Valve(26/B_VFS) >> Schematic Diagrams >> Circuit Diagram
